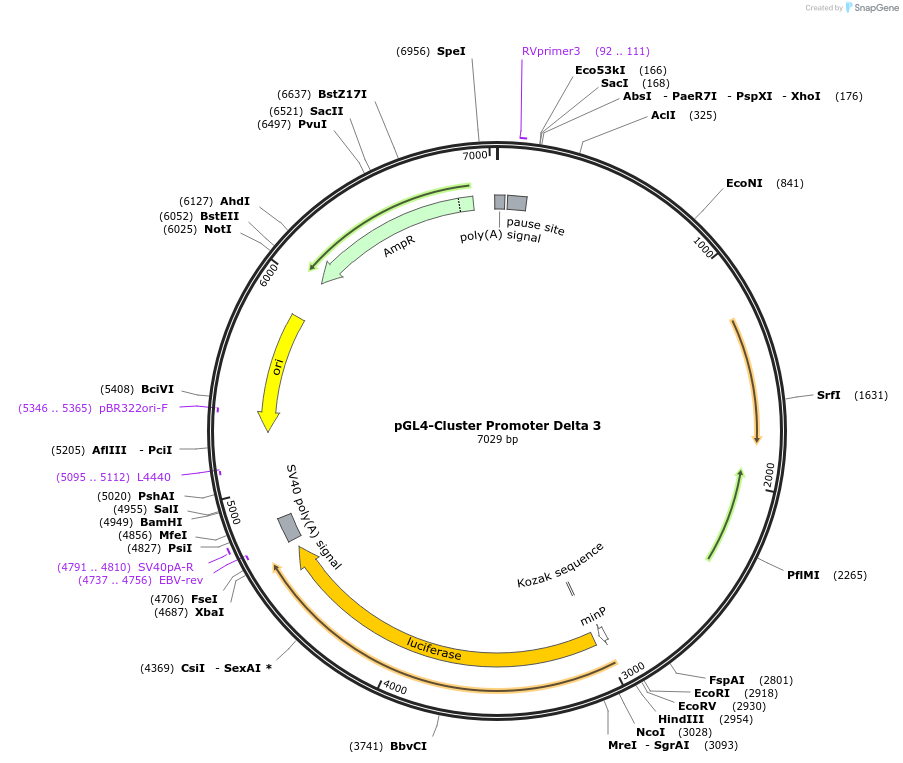

pGL4-Cluster Promoter Delta 3
PurposeIt contains ~2.7 Kb of the miR-183-96-182 cluster promoter
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||100128||Standard format: Plasmid sent in bacteria as agar stab||1||$65|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 4302
- Total vector size (bp) 7030
Growth in Bacteria
Copy numberHigh Copy
Gene/Insert namemiR-183-96-82 Cluster promoter 2.7Kb Fragment
Alt namemiR-182 cluster promoter
SpeciesH. sapiens (human)
Insert Size (bp)2728
- Cloning method Restriction Enzyme
- 5′ cloning site HpaI (destroyed during cloning)
- 3′ cloning site EcoRV (not destroyed)
- 5′ sequencing primer TAGCAAAATAGGCTGTCCCC (Common Sequencing Primers)
Addgene's sequencing results found two discrepancies compared to the depositor's sequence: 666delG, 1358G>T, 1511C>T. These differences could be SNPs and do not occur near the binding sites of the transcription factors of interest; thus they should not affect plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pGL4-Cluster Promoter Delta 3 was a gift from Eva Hernando (Addgene plasmid # 100128 ; http://n2t.net/addgene:100128 ; RRID:Addgene_100128)
For your References section:Kruppel-like factor 4 (KLF4) regulates the miR-183~96~182 cluster under physiologic and pathologic conditions. Segura MF, Jubierre L, Li S, Soriano A, Koetz L, Gaziel-Sovran A, Masanas M, Kleffman K, Dankert JF, Walsh MJ, Hernando E. Oncotarget. 2017 Apr 18;8(16):26298-26311. doi: 10.18632/oncotarget.15459. 10.18632/oncotarget.15459 PubMed 28412746
