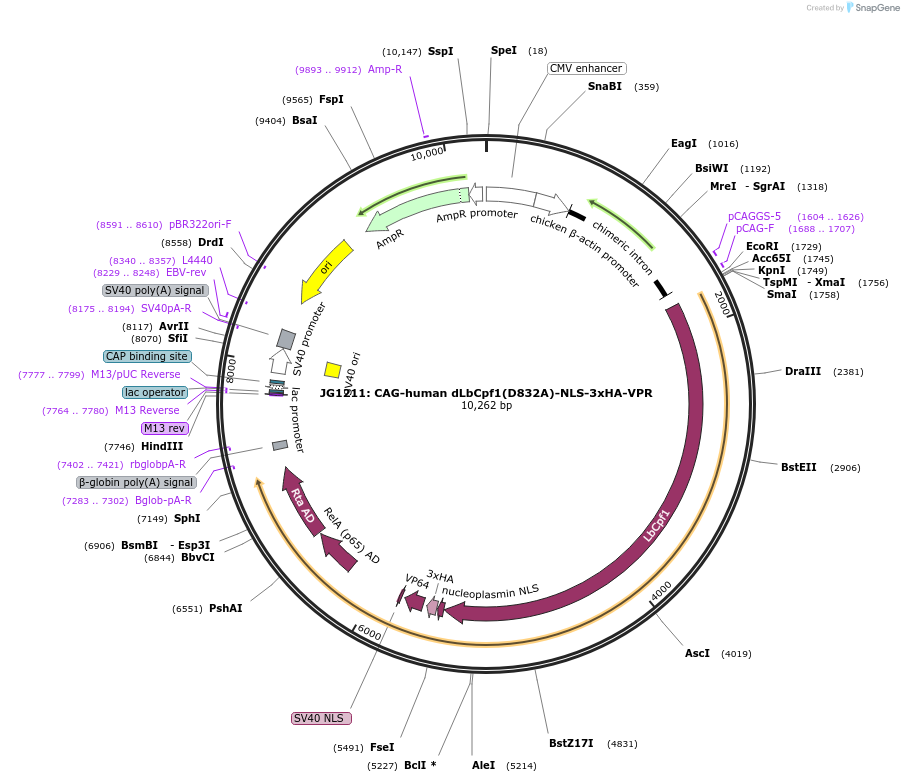

JG1211: CAG-human dLbCpf1(D832A)-NLS-3xHA-VPR
(Plasmid #104567)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 104567 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCAG-GFP
  • Backbone manufacturer
    Cepko lab (Addgene plasmid # 11179)
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    human codon optimized ‘dead’ Cpf1 fused to HSV VPR activation domain
  • Alt name
    dLbCpf1
  • Alt name
    dLbCas12a
  • Species
    Lachnospiraceae bacterium
  • Mutation
    D832A
  • Promoter CAG
  • Tag / Fusion Protein
    • NLS-3xHA-VPR (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer pCAG-F (5'-GCAACGTGCTGGTTATTGTG-3')
  • 3′ sequencing primer oBK23-R (5'-CAGAGGGAAAAAGATCTCAGTGG-3')
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    JG1211: CAG-human dLbCpf1(D832A)-NLS-3xHA-VPR was a gift from Keith Joung (Addgene plasmid # 104567 ; http://n2t.net/addgene:104567 ; RRID:Addgene_104567)
  • For your References section:

    Inducible and multiplex gene regulation using CRISPR-Cpf1-based transcription factors. Tak YE, Kleinstiver BP, Nunez JK, Hsu JY, Horng JE, Gong J, Weissman JS, Joung JK. Nat Methods. 2017 Oct 30. doi: 10.1038/nmeth.4483. 10.1038/nmeth.4483 PubMed 29083402
