pCMV-dLight1.5
(Plasmid #111058)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 111058 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

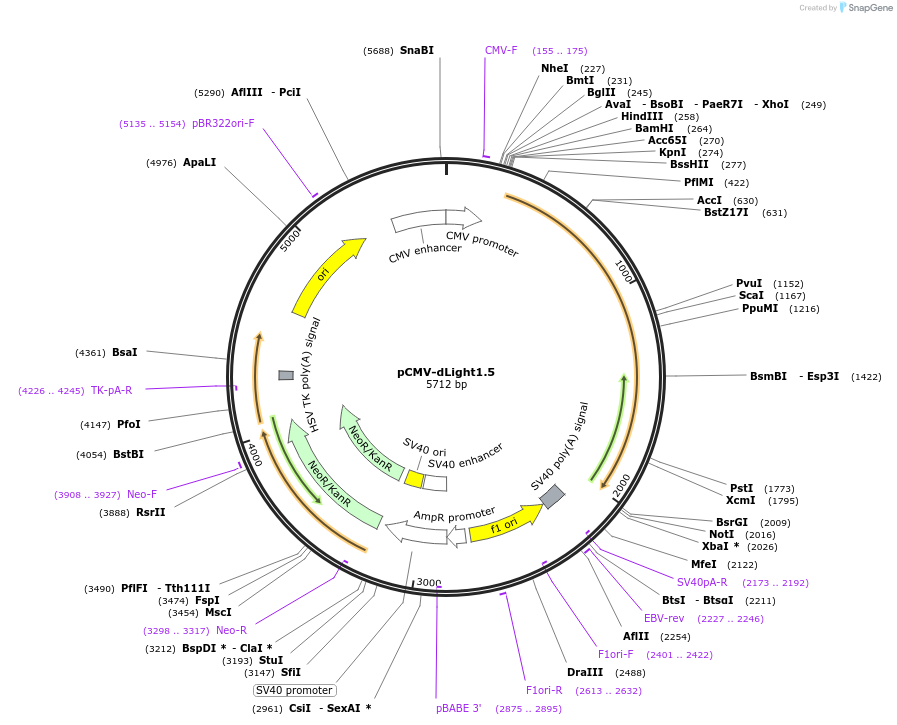

Backbone

  • Vector backbone
    pEGFP_N1
  • Backbone size w/o insert (bp) 3983
  • Total vector size (bp) 5708
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dLight1.5
  • Species
    Synthetic
  • Insert Size (bp)
    1725
  • GenBank ID
    MH244554
  • Tag / Fusion Protein
    • Flag tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer gtggatagcggtttgactcacgggg
  • 3′ sequencing primer ggtgtgggaggttttttaaagcaagtaaaacc
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-dLight1.5 was a gift from Lin Tian (Addgene plasmid # 111058 ; http://n2t.net/addgene:111058 ; RRID:Addgene_111058)
  • For your References section:

    Ultrafast neuronal imaging of dopamine dynamics with designed genetically encoded sensors. Patriarchi T, Cho JR, Merten K, Howe MW, Marley A, Xiong WH, Folk RW, Broussard GJ, Liang R, Jang MJ, Zhong H, Dombeck D, von Zastrow M, Nimmerjahn A, Gradinaru V, Williams JT, Tian L. Science. 2018 Jun 29;360(6396). pii: science.aat4422. doi: 10.1126/science.aat4422. Epub 2018 May 31. 10.1126/science.aat4422 PubMed 29853555
