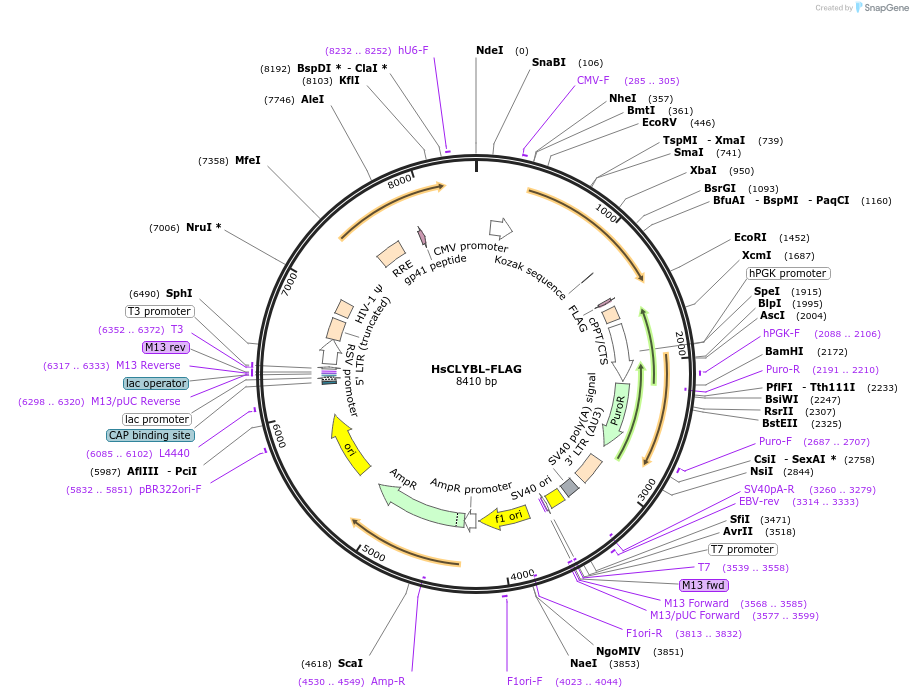

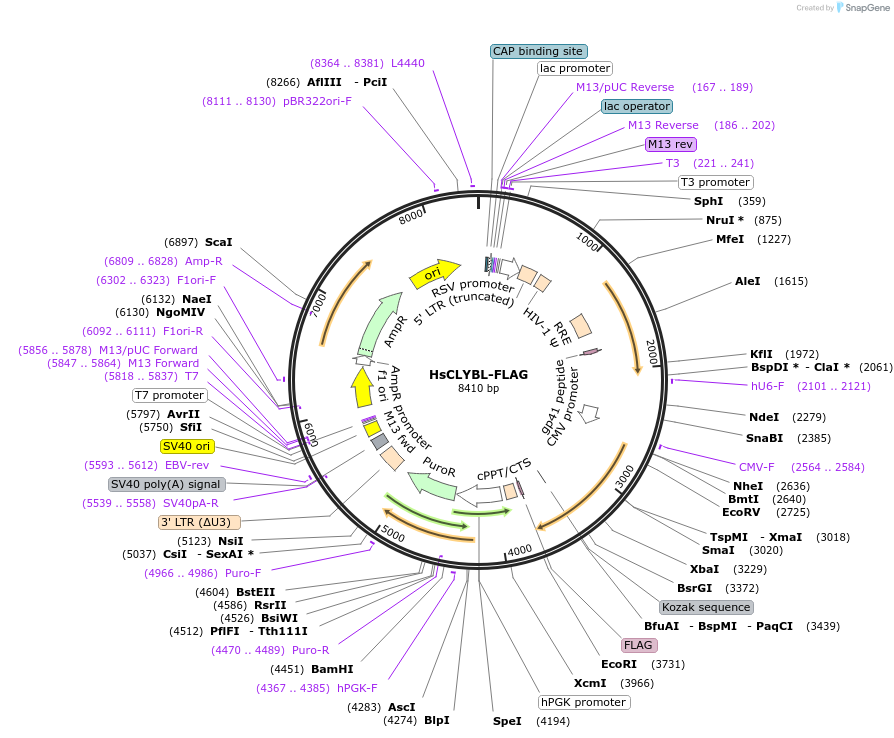

HsCLYBL-FLAG
(Plasmid #111290)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 111290 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pLys1
  • Backbone size w/o insert (bp) 7500
  • Total vector size (bp) 8500
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    human CLYBL
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1026
  • Entrez Gene
    CLYBL (a.k.a. CLB)
  • Tag / Fusion Protein
    • linker and FLAG tag: TGGGSGGSGGSMDYKDDDDK (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhe1 (not destroyed)
  • 3′ cloning site vector Xma1; insert Age1 (destroyed during cloning)
  • 5′ sequencing primer ATGGCGCTACGTCTGCTG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HsCLYBL-FLAG was a gift from Vamsi Mootha (Addgene plasmid # 111290 ; http://n2t.net/addgene:111290 ; RRID:Addgene_111290)
  • For your References section:

    The Human Knockout Gene CLYBL Connects Itaconate to Vitamin B12. Shen H, Campanello GC, Flicker D, Grabarek Z, Hu J, Luo C, Banerjee R, Mootha VK. Cell. 2017 Nov 2;171(4):771-782.e11. doi: 10.1016/j.cell.2017.09.051. Epub 2017 Oct 19. 10.1016/j.cell.2017.09.051 PubMed 29056341
