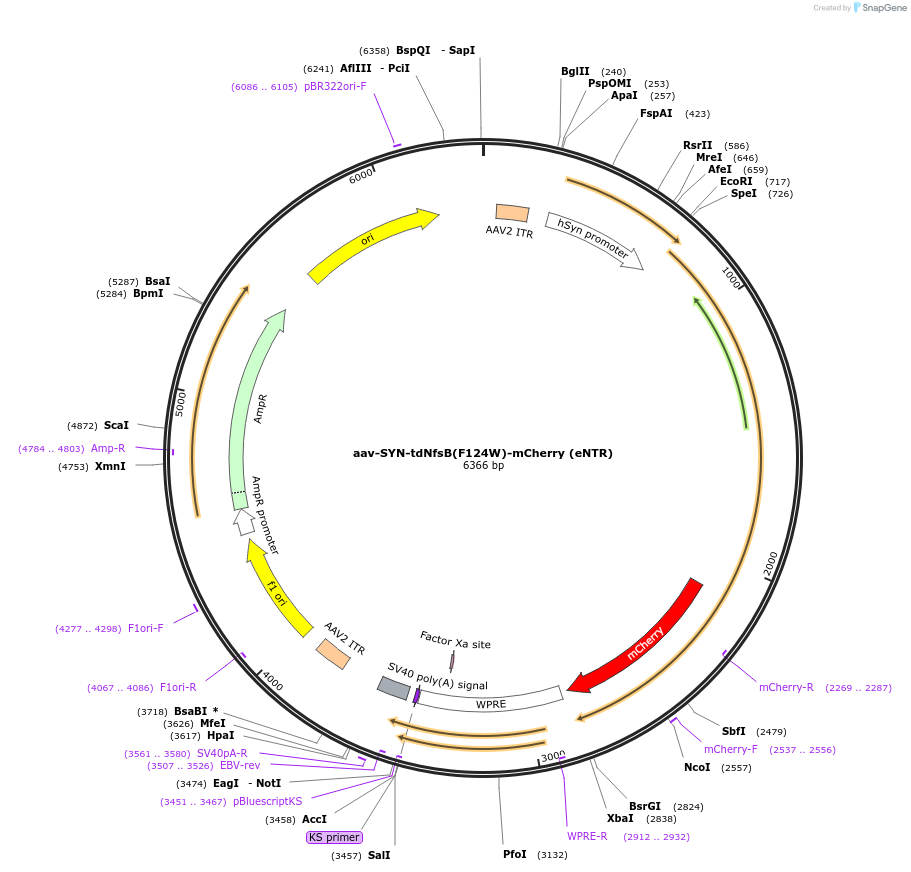

aav-SYN-tdNfsB(F124W)-mCherry (eNTR)
(Plasmid #113760)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 113760 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    AAV2
  • Total vector size (bp) 6366
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Stabl2 or Stabl3, 30C or 37C
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    tdNfsB(F124W)-mCherry
  • Alt name
    nfsb, eNTR
  • Species
    E. coli
  • Insert Size (bp)
    2109
  • Mutation
    F124W
  • Promoter Synapsin
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer cgggcgcgaccatctgc
  • 3′ sequencing primer aaggcattaaagcagcgtatc
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    aav-SYN-tdNfsB(F124W)-mCherry (eNTR) was a gift from Luke Lavis (Addgene plasmid # 113760 ; http://n2t.net/addgene:113760 ; RRID:Addgene_113760)
  • For your References section:

    Cell-Specific Chemical Delivery Using a Selective Nitroreductase-Nitroaryl Pair. Gruber TD, Krishnamurthy C, Grimm JB, Tadross MR, Wysocki LM, Gartner ZJ, Lavis LD. ACS Chem Biol. 2018 Aug 29. doi: 10.1021/acschembio.8b00524. 10.1021/acschembio.8b00524 PubMed 30111097
