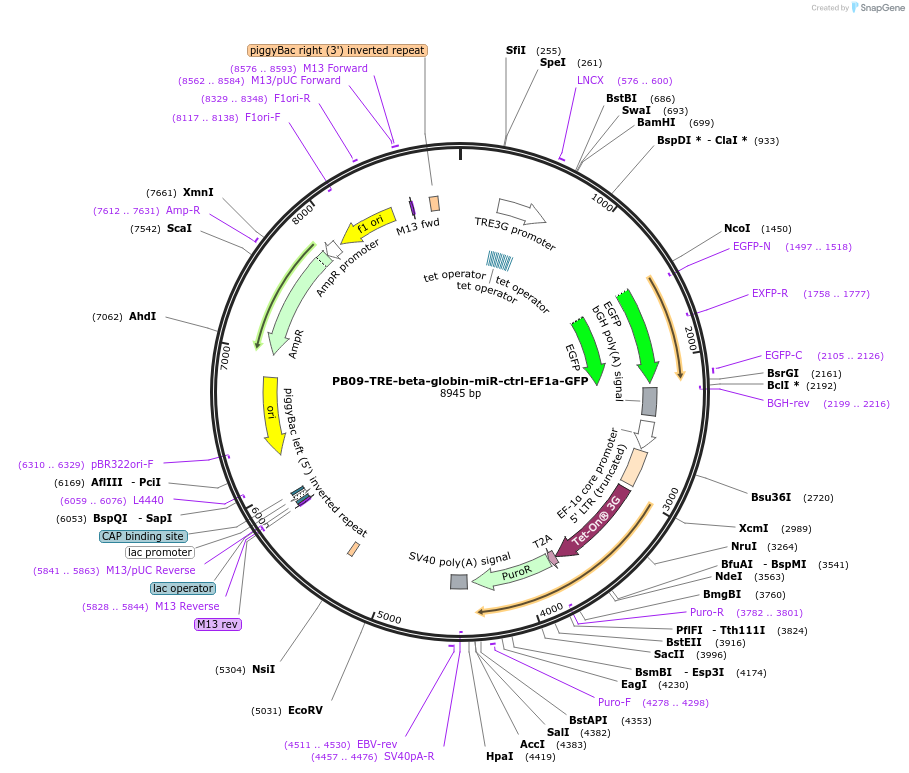

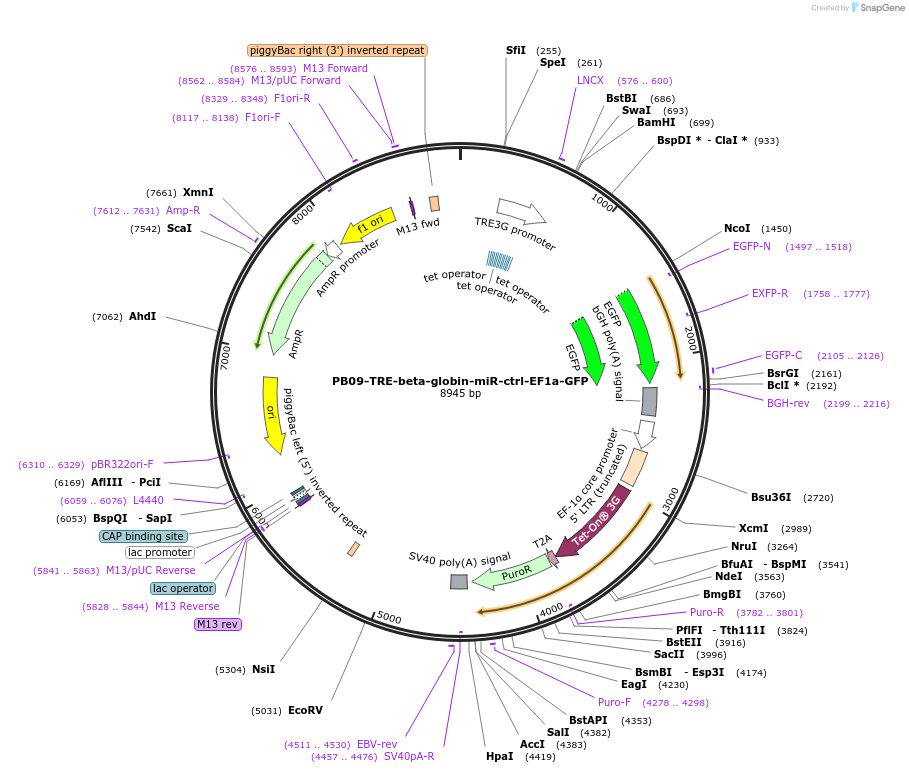

PB09-TRE-beta-globin-miR-ctrl-EF1a-GFP
(Plasmid #117319)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 117319 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    PB-TRE
  • Backbone manufacturer
    Church Lab
  • Backbone size w/o insert (bp) 7460
  • Vector type
    Mammalian Expression ; Transposon-mediated integration
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hsa-miR-CTRL
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2049
  • Mutation
    miR-124 deleted
  • Promoter Tet-inducible promoter
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CCGTACCACTTCCTACCCTC
  • 3′ sequencing primer aagtcgtgctgcttcatgtg
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' BamHI cloning site not destroyed, 3' BamHI cloning site destroyed

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PB09-TRE-beta-globin-miR-ctrl-EF1a-GFP was a gift from Volker Busskamp (Addgene plasmid # 117319 ; http://n2t.net/addgene:117319 ; RRID:Addgene_117319)
  • For your References section:

    Combined Experimental and System-Level Analyses Reveal the Complex Regulatory Network of miR-124 during Human Neurogenesis. Kutsche LK, Gysi DM, Fallmann J, Lenk K, Petri R, Swiersy A, Klapper SD, Pircs K, Khattak S, Stadler PF, Jakobsson J, Nowick K, Busskamp V. Cell Syst. 2018 Sep 28. pii: S2405-4712(18)30358-2. doi: 10.1016/j.cels.2018.08.011. 10.1016/j.cels.2018.08.011 PubMed 30292704
