PI3KC2alpha-PX (1405-1545)
(Plasmid #119119)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 119119 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

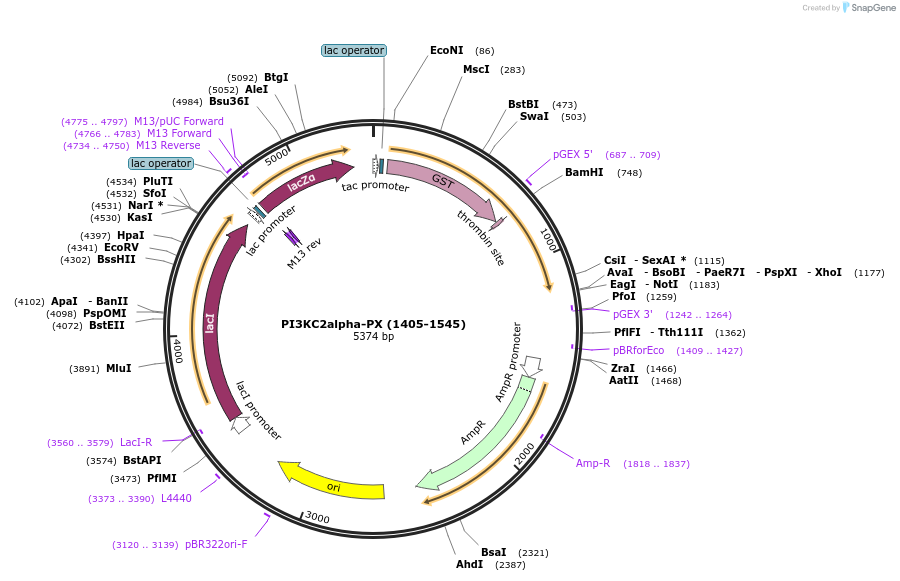

Backbone

  • Vector backbone
    pGEX4T2
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    PI3KC2alpha-PX (1405-1545)
  • Species
    H. sapiens (human)
  • Entrez Gene
    PIK3C2A (a.k.a. CPK, OCSKD, PI3-K-C2(ALPHA), PI3-K-C2A, PI3K-C2-alpha, PI3K-C2alpha)
  • Promoter tac
  • Tag / Fusion Protein
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer pGEX5
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Amino Acid Sequence: DEPILSFSPKTYSFRQDGRIKEVSVFTYHKKYNPDKHYIYVVRILREGQIEPSFVFRTFDEFQELHNKLSIIFPLWKLPGFPNRMVLGRTHIKDVAAKRKIELNSYLQSLMNASTDVAECDLVCTFFHPLLRDEKAEGIA

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PI3KC2alpha-PX (1405-1545) was a gift from Brett Collins (Addgene plasmid # 119119 ; http://n2t.net/addgene:119119 ; RRID:Addgene_119119)
  • For your References section:

    Classification of the human phox homology (PX) domains based on their phosphoinositide binding specificities. Chandra M, Chin YK, Mas C, Feathers JR, Paul B, Datta S, Chen KE, Jia X, Yang Z, Norwood SJ, Mohanty B, Bugarcic A, Teasdale RD, Henne WM, Mobli M, Collins BM. Nat Commun. 2019 Apr 4;10(1):1528. doi: 10.1038/s41467-019-09355-y. 10.1038/s41467-019-09355-y PubMed 30948714
