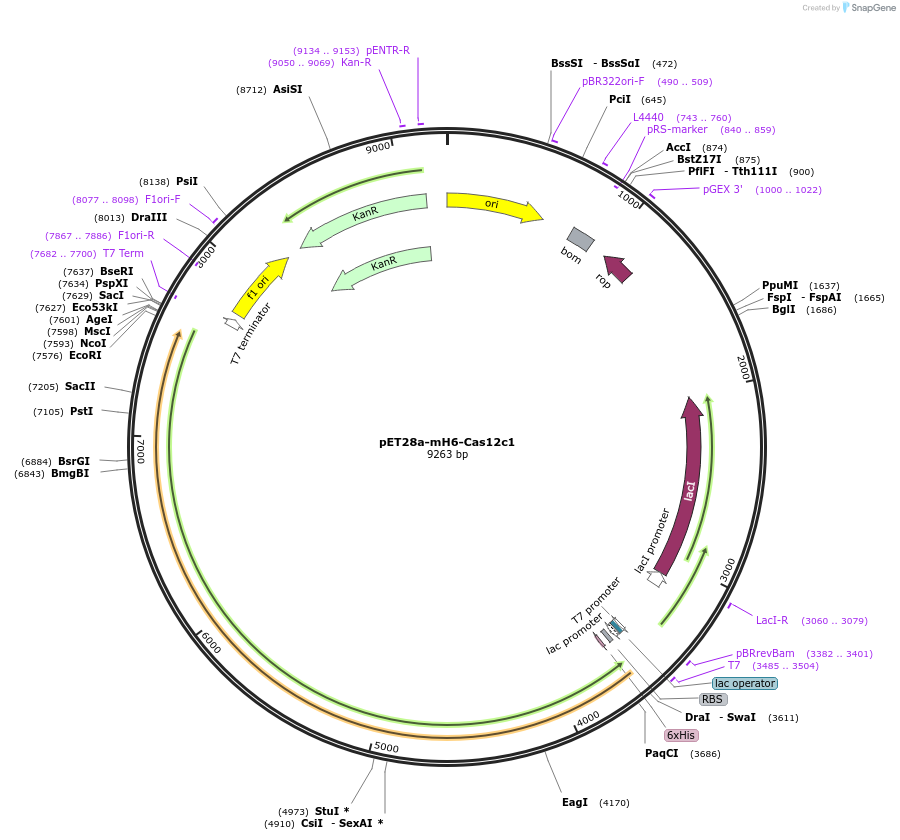

pET28a-mH6-Cas12c1
(Plasmid #120872)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 120872 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pET-28a+
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5355
  • Total vector size (bp) 9267
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Cas12c1
  • Species
    Synthetic
  • Insert Size (bp)
    3912
  • Mutation
    WT
  • Promoter lac
  • Tag / Fusion Protein
    • mH6 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For more information, please visit us at https://arbor.bio/. For commercial use or questions, please contact us at [email protected]. mH6 sequence: ATGAAAATCGAAGAAGGTAAAGGTCACCATCACCATCACCAC

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28a-mH6-Cas12c1 was a gift from Arbor Biotechnologies (Addgene plasmid # 120872 ; http://n2t.net/addgene:120872 ; RRID:Addgene_120872)
  • For your References section:

    Functionally diverse type V CRISPR-Cas systems. Yan WX, Hunnewell P, Alfonse LE, Carte JM, Keston-Smith E, Sothiselvam S, Garrity AJ, Chong S, Makarova KS, Koonin EV, Cheng DR, Scott DA. Science. 2019 Jan 4;363(6422):88-91. doi: 10.1126/science.aav7271. Epub 2018 Dec 6. 10.1126/science.aav7271 PubMed 30523077
