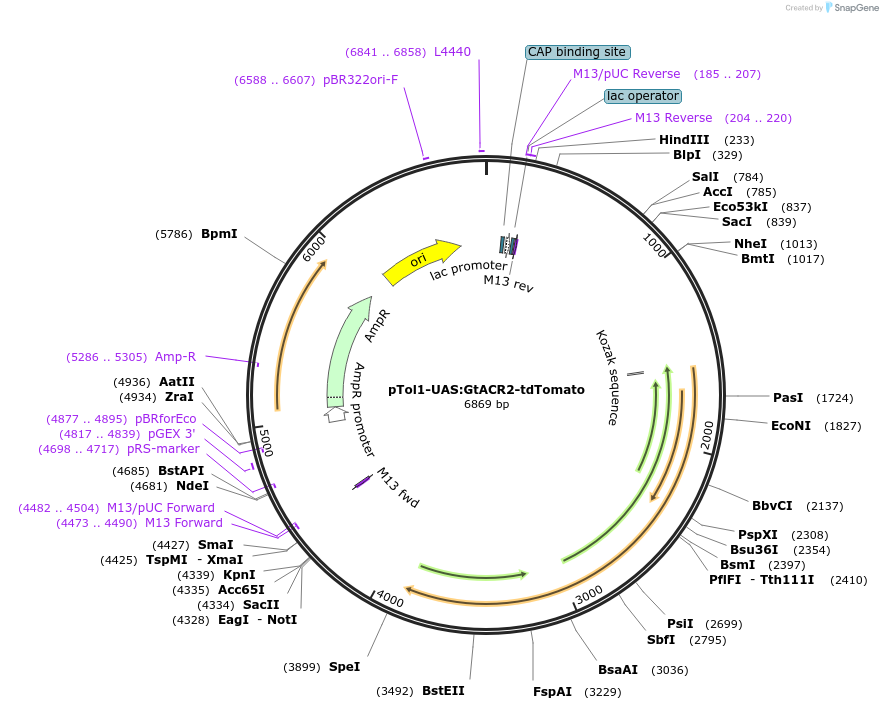

pTol1-UAS:GtACR2-tdTomato
(Plasmid #124236)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 124236 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pT1UciMP
  • Backbone manufacturer
    from Harold Burgess lab (Addgene Plasmid #62215)
  • Backbone size w/o insert (bp) 4548
  • Total vector size (bp) 6869
  • Modifications to backbone
    NcoI linearization before insert cloning
  • Vector type
    Zebrafish expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GtACR2-tdTomato
  • Species
    Guillardia theta
  • Insert Size (bp)
    2319
  • GenBank ID
  • Promoter 14xUAS-E1b
  • Tag / Fusion Protein
    • tdTomato (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer TCA GTC GTC CGT TTG TTC CG
  • 3′ sequencing primer GAG CAG CAA AGC CAT GTA GC
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    pFUGW-hGtACR2-EYFP (Addgene Plasmid #67877). Natural light-gated anion channels: A family of microbial rhodopsins for advanced optogenetics. Govorunova EG, Sineshchekov OA, Janz R, Liu X, Spudich JL. Science. 2015
  • Article Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Zebrafish Tol1 construct for UAS-mediated expression of the optogenetic opsin CoChR fused to the red fluorescent protein tdTomato. In addition to the opsin gene, it contains tol1 arms, 14xUAS-E1b promoter, ubiquitin C intron, and ocean pout antifreeze protein terminator. Co-inject with Tol1 (not Tol2) transposase mRNA.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTol1-UAS:GtACR2-tdTomato was a gift from Isaac Bianco (Addgene plasmid # 124236 ; http://n2t.net/addgene:124236 ; RRID:Addgene_124236)
  • For your References section:

    A calibrated optogenetic toolbox of stable zebrafish opsin lines. Antinucci P, Dumitrescu A, Deleuze C, Morley HJ, Leung K, Hagley T, Kubo F, Baier H, Bianco IH, Wyart C. Elife. 2020 Mar 27;9. pii: 54937. doi: 10.7554/eLife.54937. 10.7554/eLife.54937 PubMed 32216873
