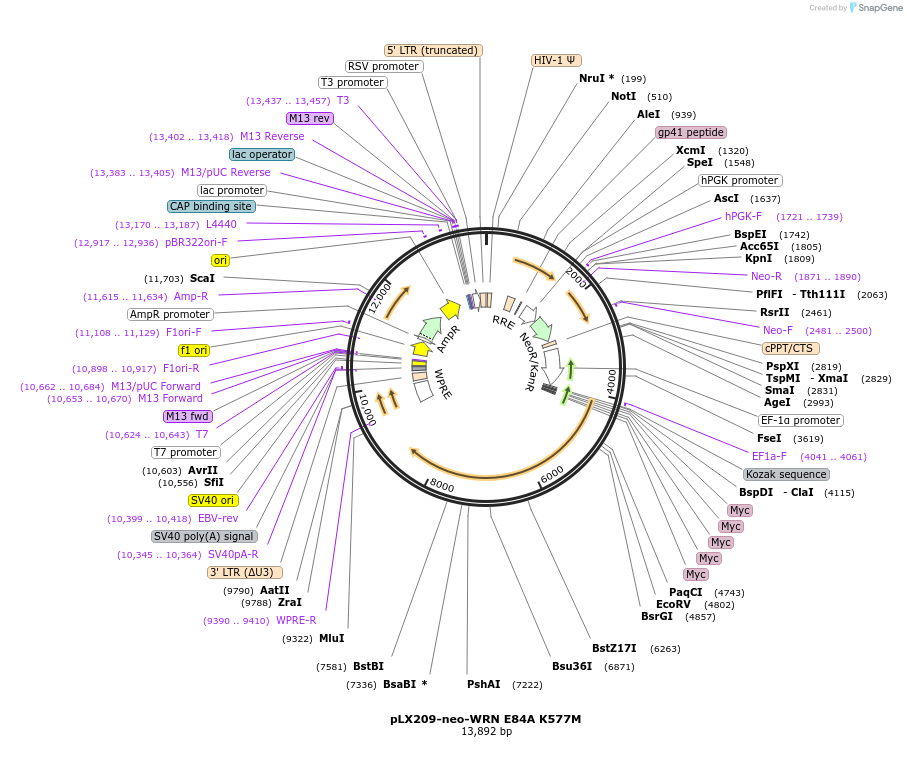

pLX209-neo-WRN E84A K577M
(Plasmid #125791)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 125791 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pLX_TRC209
  • Backbone size w/o insert (bp) 9634
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    myc-WRN E84A/K577M
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    5226
  • Mutation
    E84A/K577M (exonuclease/helicase-dead)
  • Entrez Gene
    WRN (a.k.a. RECQ3, RECQL2, RECQL3)
  • Tag / Fusion Protein
    • 5x myc (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site MluI (not destroyed)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    pMM289 (addgene iD #46037)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/502070v1 for BioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLX209-neo-WRN E84A K577M was a gift from Francisca Vazquez (Addgene plasmid # 125791 ; http://n2t.net/addgene:125791 ; RRID:Addgene_125791)
  • For your References section:

    WRN helicase is a synthetic lethal target in microsatellite unstable cancers. Chan EM, Shibue T, McFarland JM, Gaeta B, Ghandi M, Dumont N, Gonzalez A, McPartlan JS, Li T, Zhang Y, Bin Liu J, Lazaro JB, Gu P, Piett CG, Apffel A, Ali SO, Deasy R, Keskula P, Ng RWS, Roberts EA, Reznichenko E, Leung L, Alimova M, Schenone M, Islam M, Maruvka YE, Liu Y, Roper J, Raghavan S, Giannakis M, Tseng YY, Nagel ZD, D'Andrea A, Root DE, Boehm JS, Getz G, Chang S, Golub TR, Tsherniak A, Vazquez F, Bass AJ. Nature. 2019 Apr 10. pii: 10.1038/s41586-019-1102-x. doi: 10.1038/s41586-019-1102-x. 10.1038/s41586-019-1102-x PubMed 30971823
