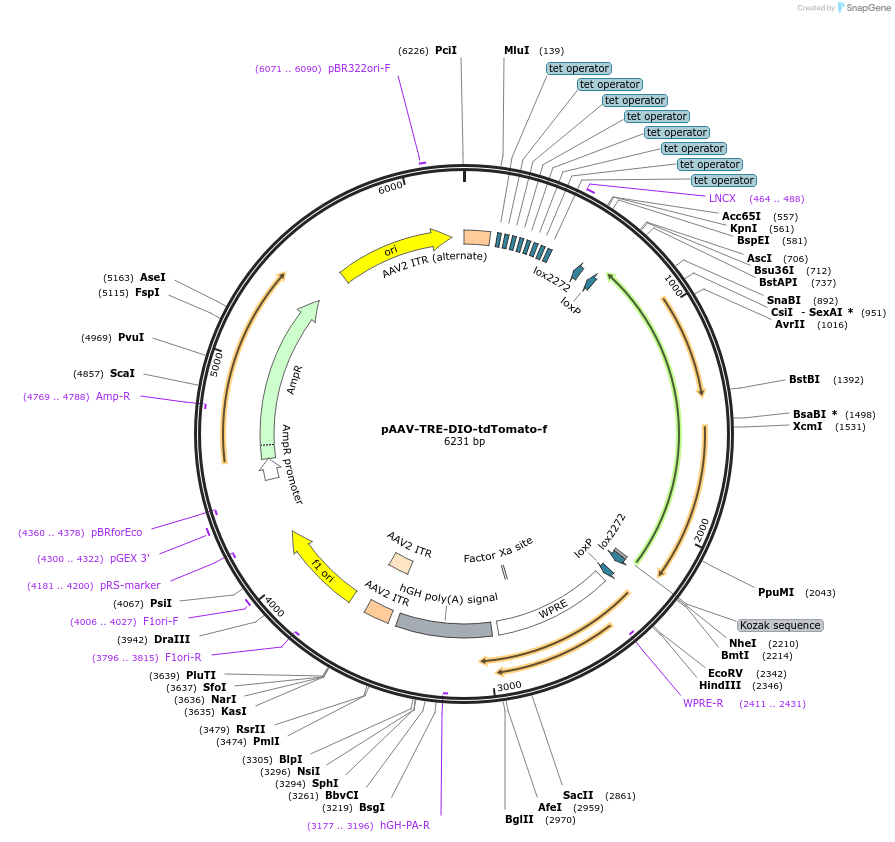

pAAV-TRE-DIO-tdTomato-f
(Plasmid #127092)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 127092 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    tdTomato-f
  • Alt name
    tdTomato-farnesylated
  • Insert Size (bp)
    1491
  • Tag / Fusion Protein
    • farnesylation signal from c-Ha-Ras (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-TRE-DIO-tdTomato-f was a gift from Viviana Gradinaru (Addgene plasmid # 127092 ; http://n2t.net/addgene:127092 ; RRID:Addgene_127092)
  • For your References section:

    Identification of peripheral neural circuits that regulate heart rate using optogenetic and viral vector strategies. Rajendran PS, Challis RC, Fowlkes CC, Hanna P, Tompkins JD, Jordan MC, Hiyari S, Gabris-Weber BA, Greenbaum A, Chan KY, Deverman BE, Munzberg H, Ardell JL, Salama G, Gradinaru V, Shivkumar K. Nat Commun. 2019 Apr 26;10(1):1944. doi: 10.1038/s41467-019-09770-1. 10.1038/s41467-019-09770-1 PubMed 31028266
