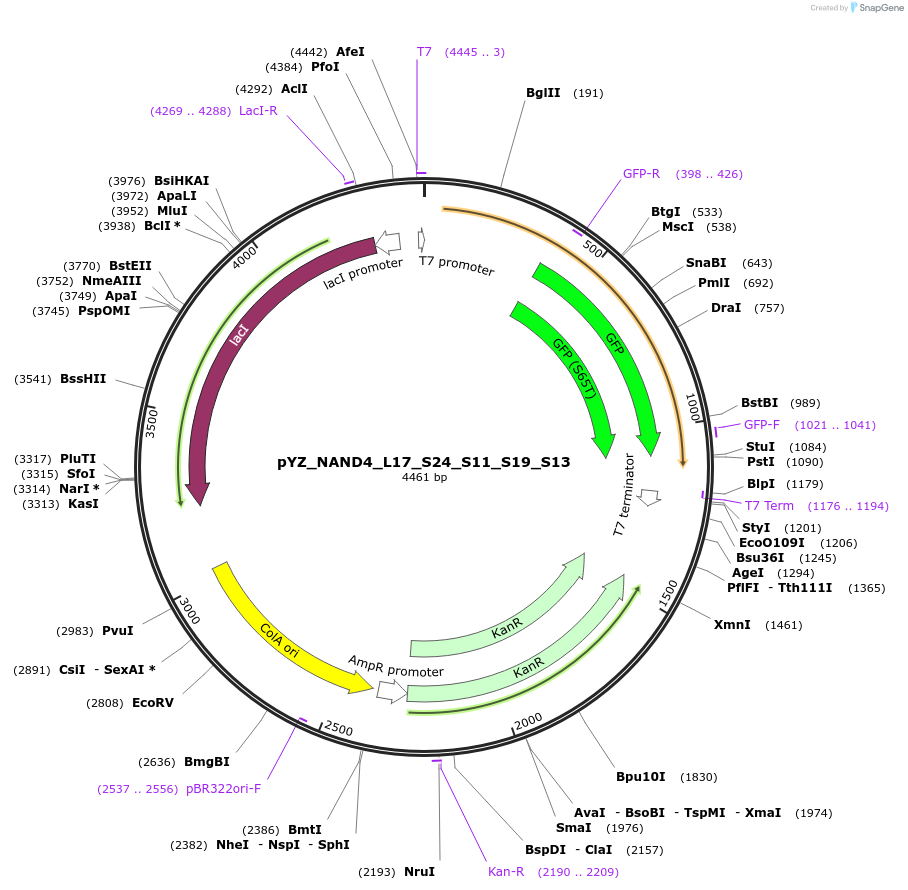

pYZ_NAND4_L17_S24_S11_S19_S13
(Plasmid #132732)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 132732 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCOLAduet
  • Backbone size w/o insert (bp) 3224
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    3WJ_NAND4_L17_S24_S11_S19_S13
  • Species
    Synthetic
  • Insert Size (bp)
    1237

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The output gene is GFPmut3b with an ASV degradation tag. Please visit https://www.biorxiv.org/content/10.1101/501783v1 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pYZ_NAND4_L17_S24_S11_S19_S13 was a gift from Alexander Green & Peng Yin (Addgene plasmid # 132732 ; http://n2t.net/addgene:132732 ; RRID:Addgene_132732)
  • For your References section:

    De novo-designed translation-repressing riboregulators for multi-input cellular logic. Kim J, Zhou Y, Carlson PD, Teichmann M, Chaudhary S, Simmel FC, Silver PA, Collins JJ, Lucks JB, Yin P, Green AA. Nat Chem Biol. 2019 Dec;15(12):1173-1182. doi: 10.1038/s41589-019-0388-1. Epub 2019 Nov 4. 10.1038/s41589-019-0388-1 PubMed 31686032
