Plasmid 13420: pGP-FB-orig BA

Gene/insert name:		orig BA
Alternative names:		original BCR-ABL three-finger array
Insert size (bp):		260
Species of gene(s):		Other
Fusion proteins or tags:		Gal11P
Terminal:		N terminal on backbone
Vector backbone:		pGP-FB (Search Vector Database)
Type of vector:		Bacterial expression
Backbone size (bp):		3483
Cloning site 5':		XbaI
Site destroyed during cloning:		No
Cloning site 3':		BamHI
Site destroyed during cloning:		No
5' Sequencing primer:		GGG GGA TTT CTG TTC ATG GGG G (List of Sequencing Primers)
Bacteria resistance:		Ampicillin
High or low copy:		Low Copy
Grow in standard E. coli @ 37C:		No
Please specify bacterial strain for growth and growth condition:		Needs strain with lacIq
Sequence:		View sequence
Author's Map:		View map
Plasmid Provided In:		XL1 Blue
Principal Investigator:		Keith Joung
Terms and Licenses:		MTA

Comments: Positive control for B2H beta-galactosidase assay. Has coding sequence for �original� BCR-ABL three-finger array.

This plasmid requires a bacterial strain, such as XL1 Blue, that expresses the lacIq allele of lac repressor. This ensures repression of the strong lacUV5 promoter, which directs expression of the zinc finger-Gal11P hybrid protein.

Addgene has sequenced a portion of this plasmid for verification. Click here for the sequencing result.

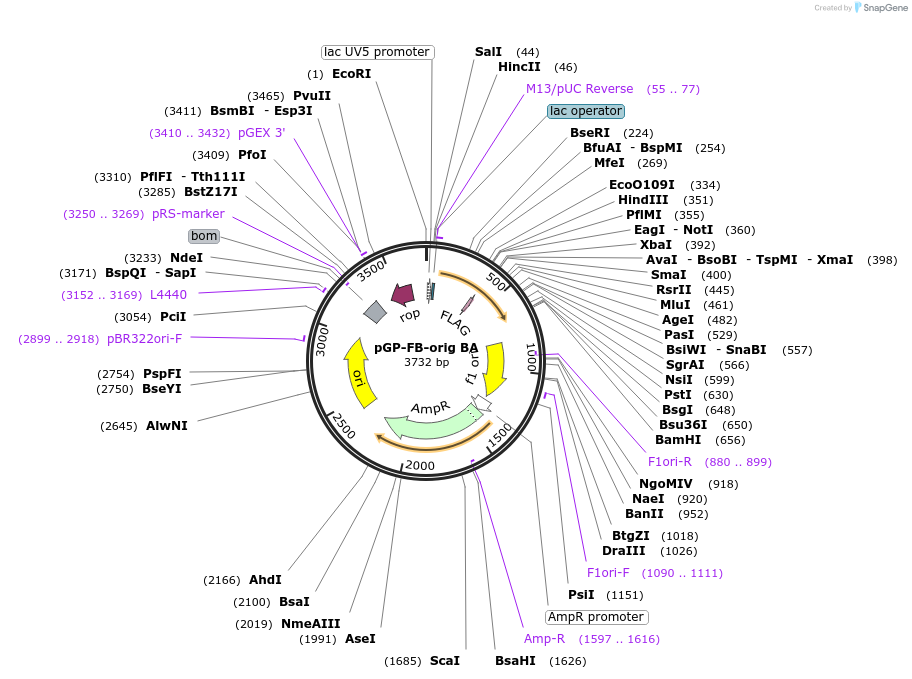

Click on map to enlarge

Selected features

lac_promoter

12 - 35

M13_pUC_rev_primer

55 - 77

f1_origin

810 - 1116

AmpR_promoter

1309 - 1337

Orf frame 2

1379 - 2239

Ampicillin

1379 - 2239

pBR322_origin

2394 - 3013

pGEX_3_primer

3410 - 3432

ROP

3617 - 3426

Unique restriction sites

EcoRI		1
SalI		44
HindIII		351
NotI		360
EagI		360
XbaI		392
AgeI		482
PstI		630
BamHI		656
AseI		1991
NdeI		3233
PvuII		3465
