Plasmid 13423: pBAC-BA-lacZ
Gene/insert name: BA
Alternative names: Binding site for original BCR-ABL three-finger array
Insert size (bp): Unknown
Vector backbone: pBAC-lacZ  (Search Vector Database)
Type of vector: Bacterial expression,Cre/Lox
Backbone size (bp): 11151
Cloning site 5': BsaI
Site destroyed during cloning: No
Cloning site 3': BsaI
Site destroyed during cloning: No
5' Sequencing primer: CGC CAG GGT TTT CCC AGT CAC GAC  (List of Sequencing Primers)
Bacteria resistance: Chloramphenicol
High or low copy: High Copy
Grow in standard E. coli @ 37C: Yes
Sequence:View sequence
Author's Map:View map
Plasmid Provided In:Transformax EPI300
Principal Investigator:Keith Joung
Terms and Licenses:MTA

Comments: Bacterial cell-based two-hybrid (B2H) reporter vector with binding site for "original" BCR-ABL three-finger array for use as a positive control with pGP-FB-orig BA. Use 12.5 ug/ml chloramphenicol for growth.

The pBAC-lacZ plasmid is a mini-F' that can be replicated in standard E. coli strains, but because it is maintained as a single copy episome, it gives low DNA yields. pBAC-lacZ also contains a second, higher copy number origin of replication (oriV) that is only active in the presence of a trans-acting factor encoded by the trfA gene. Transformax EPI300 cells express trfA from an inducible promoter that we have found is inducible with arabinose. When the trfA gene is induced in Transformax EPI300 cells, the copy number of pBAC-lacZ plasmid is increased in the cells and reasonable yields of plasmid can be obtained using a standard miniprep procedure.

Addgene has sequenced a portion of this plasmid for verification. Click here for the sequencing result.

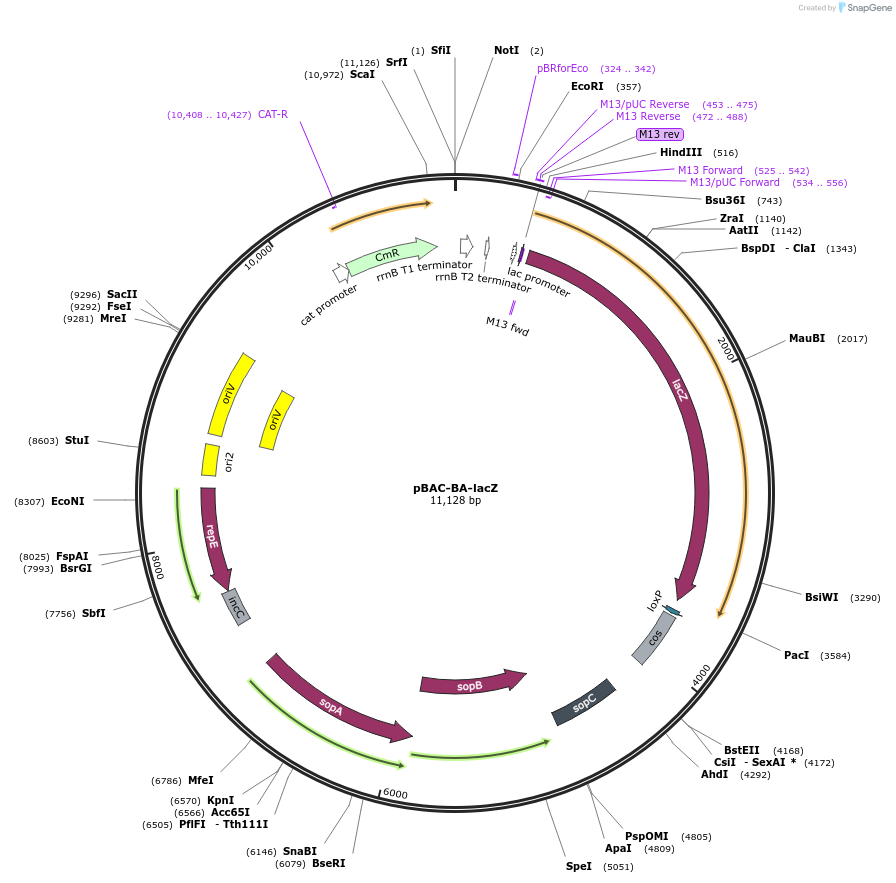

Click on map to enlarge

Selected features
rrnB_T1_terminator 44 - 87
rrnB_T2_terminator 219 - 246
lac_promoter 413 - 442
M13_pUC_rev_primer 453 - 475
M13_reverse_primer 474 - 492
M13_forward20_primer 541 - 525
M13_pUC_fwd_primer 556 - 534
Orf frame 1 484 - 3579
lacZ 532 - 3576
trpA_terminator 3600 - 3627
loxP 3679 - 3646
cosN 3891 - 3980
Orf frame 2 5872 - 4901
Orf frame 1 7047 - 5872
Orf frame 3 8381 - 7626
Orf frame 1 10342 - 11001
CAT/CamR 10342 - 11001
Unique restriction sites

NotI 2
HindIII 516
AatII 1142
ClaI 1343
ApaI 4809
SpeI 5051
KpnI 6570
StuI 8603
SacII 9297

Please acknowledge the principal investigator if you use this plasmid in a publication.

Also, please include the text "Addgene plasmid 13423" in your Materials and Methods section. This information allows Addgene to create a link from the plasmid page to your publication.
