pDW1775
(Plasmid #13456)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 13456 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pDW1775
  • Backbone size (bp) 5528
  • Vector type
    Plant Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    None
  • Tag / Fusion Protein
    • AcV5 (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T3
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Plant zinc finger nuclease cloning vector. Zinc fingers are cloned in between unique XbaI and BamHI sites in front of the FokI nuclease domain.

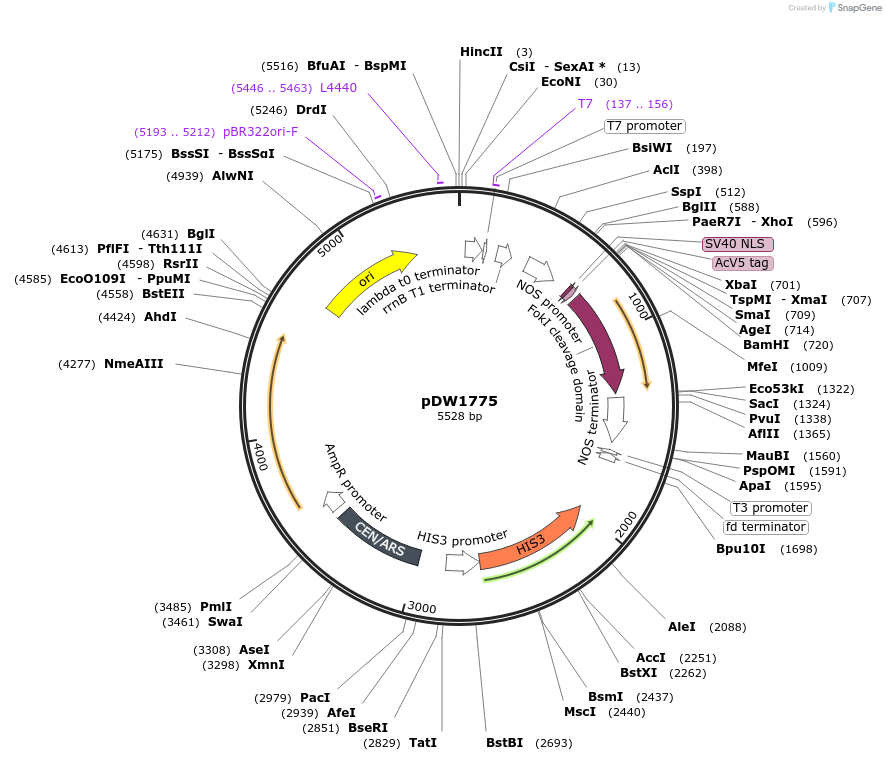

pDW1775 consists of the following components in the given order: Hinc II, SexA I, EcoN I, lambda T0 terminator, T7 primer site, BsiW I, rrnB terminator, modified NOS promoter, Bgl II, Xho I, plant leader, MASS translation signal, SV40 nuclear localization signal, AcV5 epitope tag, Xba I, Xma I, Age I, BamH I, plant optimized Fok I nuclease domain, Sac I, NOS terminator, Apa I, T3 primer site, phage FD gene VIII terminator, Bpu 10 I, modified yeast His3 gene, Pac I, yeast CEN/ARS, Bsu36 I (not unique), modified beta lactamase gene (ampicillin resistance), E. coli Trp A terminator, BstE II, Blp I, PpuM I, Rsr II, PflF I, Bgl I, modified high copy ColEI replicon, and back to Hinc II. This vector can be maintained in E. coli and yeast (Saccharomyces cerevisiae) and is also able to express a zinc finger nuclease in yeast and plants using the modified NOS promoter to drive expression. Additionally, this vector was designed to have minimal expression of the zinc finger nuclease in E. coli to facilitate cloning and reduce toxicity effects.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDW1775 was a gift from Daniel Voytas (Addgene plasmid # 13456 ; http://n2t.net/addgene:13456 ; RRID:Addgene_13456)
  • For your References section:

    Standardized reagents and protocols for engineering zinc finger nucleases by modular assembly. Wright DA, Thibodeau-Beganny S, Sander JD, Winfrey RJ, Hirsh AS, Eichtinger M, Fu F, Porteus MH, Dobbs D, Voytas DF, Joung JK. Nat Protoc. 2006;1(3):1637-52. doi: 10.1038/nprot.2006.259 10.1038/nprot.2006.259 PubMed 17406455
