pLVX-EF1a-GFP-LaminA-IRES-Hygromycin
(Plasmid #134867)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 134867 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

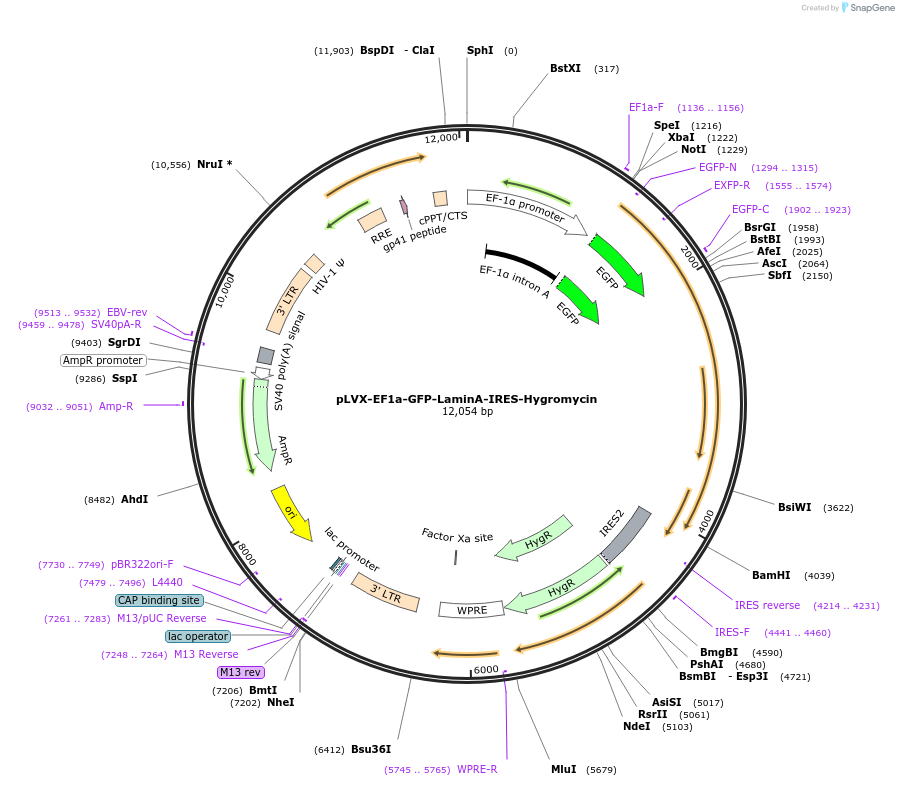

Backbone

  • Vector backbone
    pLVX-EF1a-IRES-Hygromycin
  • Backbone size w/o insert (bp) 9258
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Lamin A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1995
  • Entrez Gene
    LMNA (a.k.a. CDCD1, CDDC, CMD1A, CMT2B1, EMD2, FPL, FPLD, FPLD2, HGPS, IDC, LDP1, LFP, LGMD1B, LMN1, LMNC, LMNL1, MADA, PRO1)
  • Promoter EF1a
  • Tag / Fusion Protein
    • GFP (N terminal on insert)

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    GFP-LaminA subcloned from Addgene #17662

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLVX-EF1a-GFP-LaminA-IRES-Hygromycin was a gift from David Andrews (Addgene plasmid # 134867 ; http://n2t.net/addgene:134867 ; RRID:Addgene_134867)
  • For your References section:

    A reference library for assigning protein subcellular localizations by image-based machine learning. Schormann W, Hariharan S, Andrews DW. J Cell Biol. 2020 Mar 2;219(3). pii: 133635. doi: 10.1083/jcb.201904090. 10.1083/jcb.201904090 PubMed 31968357
