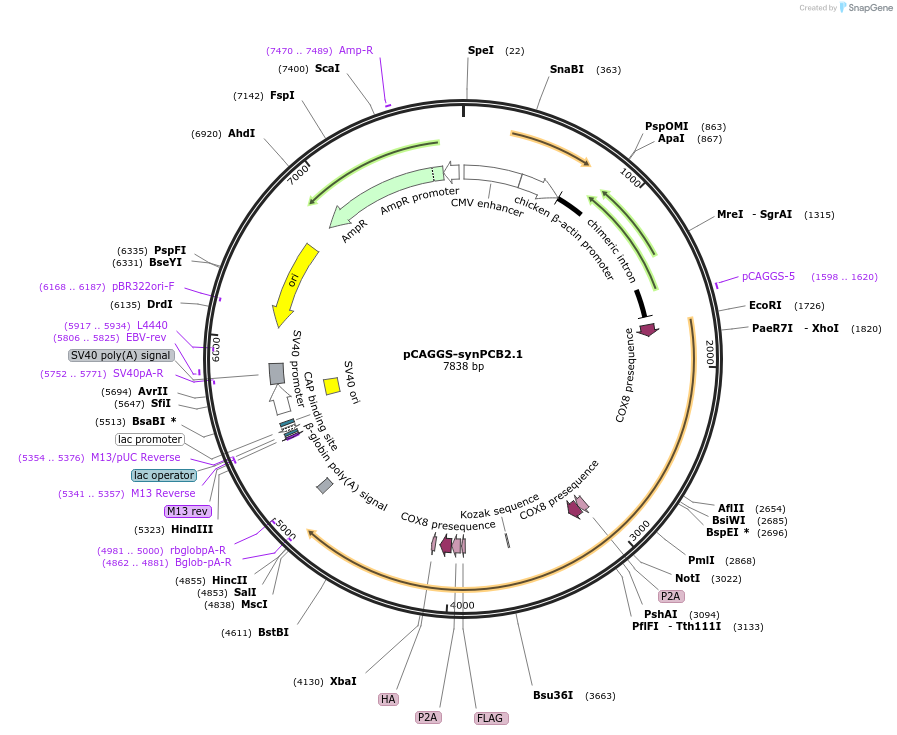

pCAGGS-synPCB2.1
(Plasmid #139478)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 139478 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCAGGS
  • Backbone manufacturer
    Junichi Miyazaki (Osaka University, Japan)
  • Backbone size w/o insert (bp) 4870
  • Total vector size (bp) 7838
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MTS-Fnr-Fd-P2A-MTS-PcyA-FLAG-P2A-MTS-HA-HO1
  • Alt name
    synPCB2.1
  • Species
    Synthetic; Thermosynechococcus elongatus bp-1
  • Insert Size (bp)
    3117
  • Promoter CAG promoter

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer catgttcatgccttcttctttttcc
  • 3′ sequencing primer agatgctcaaggggcttcatgatg
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAGGS-synPCB2.1 was a gift from Kazuhiro Aoki (Addgene plasmid # 139478 ; http://n2t.net/addgene:139478 ; RRID:Addgene_139478)
  • For your References section:

    Improvement of Phycocyanobilin Synthesis for Genetically Encoded Phytochrome-Based Optogenetics. Uda Y, Miura H, Goto Y, Yamamoto K, Mii Y, Kondo Y, Takada S, Aoki K. ACS Chem Biol. 2020 Nov 20;15(11):2896-2906. doi: 10.1021/acschembio.0c00477. Epub 2020 Nov 9. 10.1021/acschembio.0c00477 PubMed 33164485
