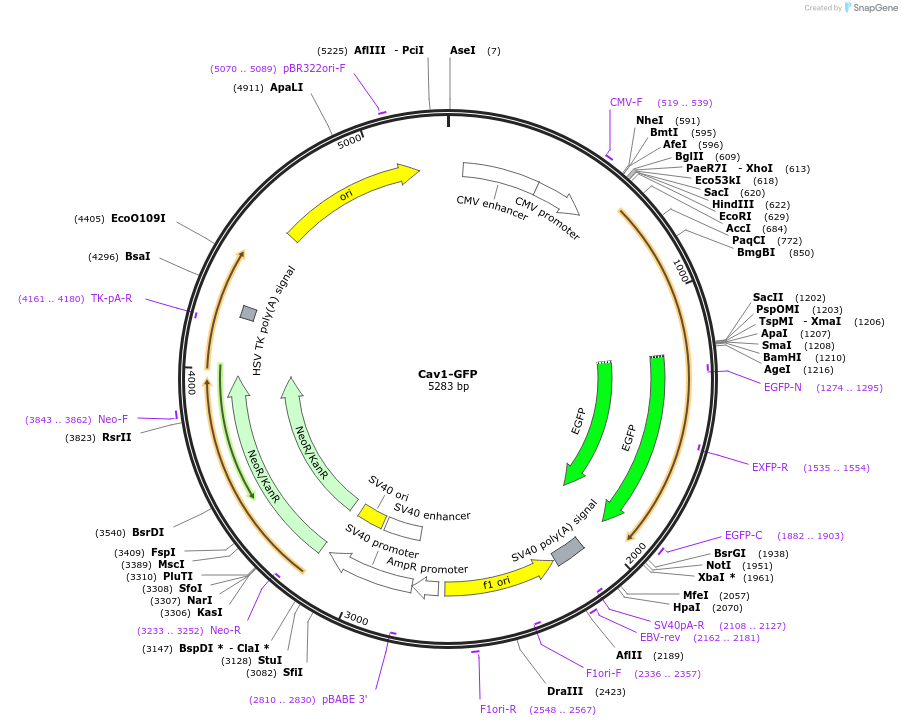

Cav1-GFP
(Plasmid #14433)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 14433 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4749
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Caveolin-1
  • Alt name
    Cav1
  • Species
    Canis familalis
  • Insert Size (bp)
    534
  • GenBank ID
    NM_001003296
  • Entrez Gene
    CAV1 (a.k.a. caveolin 1)
  • Tag / Fusion Protein
    • EGFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site KpnI (destroyed during cloning)
  • 5′ sequencing primer 5'-CCAAAATGTCGTAACAACTCCG
  • 3′ sequencing primer 5'-CGGACACGCTGAACTTGTGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Cav1-GFP was a gift from Ari Helenius (Addgene plasmid # 14433 ; http://n2t.net/addgene:14433 ; RRID:Addgene_14433)
  • For your References section:

    Assembly and trafficking of caveolar domains in the cell: caveolae as stable, cargo-triggered, vesicular transporters. Tagawa A, Mezzacasa A, Hayer A, Longatti A, Pelkmans L, Helenius A. J Cell Biol. 2005 Aug 29. 170(5):769-79. 10.1083/jcb.200506103 PubMed 16129785
