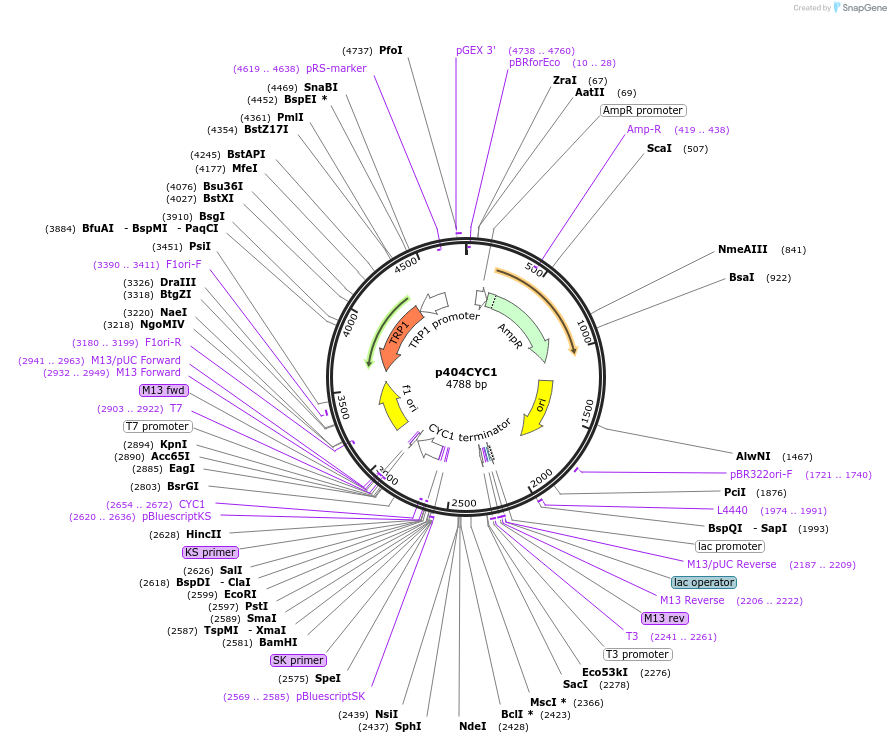

p404CYC1
(Plasmid #15971)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 15971 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pRS404
  • Backbone manufacturer
    Sikorski & Hieter, Genetics 122:19-27 (1989)
  • Backbone size w/o insert (bp) 4173
  • Vector type
    Bacterial Expression, Yeast Expression
  • Selectable markers
    TRP1

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CYC1 promoter + polylinker + CYC1 terminator
  • Alt name
    truncated CYC1 promoter
  • Alt name
    Cytochrome c, isoform 1
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    616
  • Mutation
    CYC1 promoter is between SacI and XbaI restriction sites.
  • Entrez Gene
    CYC1 (a.k.a. YJR048W)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SacI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer M13 Reverse
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Plasmid was made by Ben Timney (Rockefeller University). Insert was cut from Mumberg plasmid p413CYC1, which was obtained from ATCC.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Mumberg D, Muller R, Funk M. Gene 156:119-22 (1995).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p404CYC1 was a gift from Nicolas Buchler & Fred Cross (Addgene plasmid # 15971 ; http://n2t.net/addgene:15971 ; RRID:Addgene_15971)
