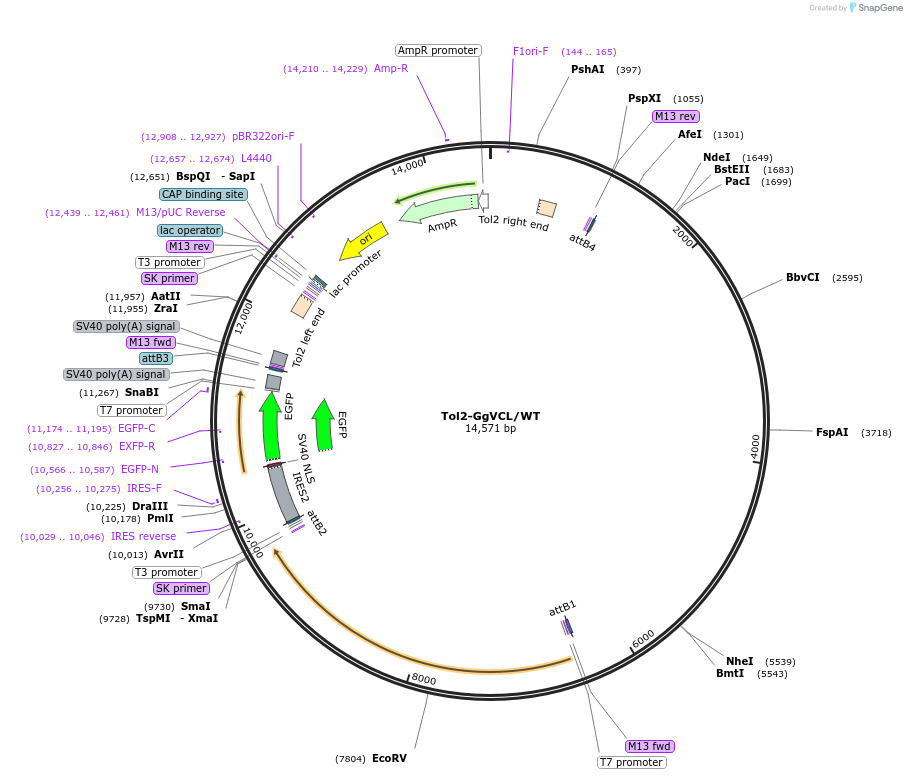

Tol2-GgVCL/WT
(Plasmid #162787)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 162787 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    destination vector pDestTol2pA2(#394)
  • Total vector size (bp) 14567
  • Modifications to backbone
    The LR reaction involved the use of Gateway LR Clonase II Plus Enzyme Mix (Invitrogen 12538-120) to fuse 4 plasmids from Tol2kit into a single final vector: the 5’entry plasmid with a β-actin promoter called p5E-actin (#299), the middle entry plasmid with the VCL insert pME-VCL (wt or mut), the 3’entry plasmid p3E-IRES-nls-GFP (#391) and the destination vector.
  • Vector type
    Mammalian Expression, Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    NEBC3019I
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Gallus gallus vinculin
  • Alt name
    VCL
  • Species
    G. gallus (chicken)
  • Insert Size (bp)
    3204
  • Mutation
    WT
  • Entrez Gene
    VCL (a.k.a. VINC1)
  • Promoter beta actin
  • Tag / Fusion Protein
    • IRES-GFP

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer Fwd (KpnI-Kozak-chVCL): 5->3 : ATATggtaccACCATGatgcccgtcttc (28 nt)
  • 3′ sequencing primer RV (EcoRI-STOP-ch VCL): 5->3: AGCTgaattcctaCTGATACCATGGGGTC (29 nt)
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    From pET15b/GVcl 1-1066 (Addgene #46171)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The incorporation of GgVCL and GgVCL/*TBM in a eukaryotic transient expression vector was done according to the following steps:
1) amplification of VCL sequence with Phusion-HF DNA pol and primers with a Kozac initiation sequence or RBS and side restriction enzyme sites (KpnI -FW and EcoRI –rev; ch-VCL custom primers);
2) extension with Taq DNA pol to generate A-ends;
3) Ligation to the T-ended vector TOPO TA #450640 through the topo cloning reaction and dilution in TE (Invitrogen 8019005?);
4) transformation of DH5α (C2987I) and selection with kanamycin and IPTG/Xgal (EU 0012-D);
5) Minipreps (740588.250) from presumed 3 TOPO-WT and 3 TOPO-MUT colonies, DNA quantification and diagnostic digestions with AccI, EcoRI or KpnI;
6) electrophoresis of abundant EcoRI + KpnI digestion products and band cutting;
7) purification of VCL sequence from gel and of EcoRI + KpnI digested and alkaline phosphatase (#EF0651) -treated pME-MCS (#237) with Macherey-Nagel #740609.250 kit;
8) DNA quantification;
9) ligation of each VCL sequence to pME-MCS plasmid using Ligase T4 (NEB MO202T);
10) transformation of DH5α (NEB C2987I) with the respective ligation reactions; minipreps (740588.250) to obtain pME-VCL, DNA quantification and diagnostic digestions with AccI , (KpnI-HF + EcoRI-HF) and BamHI-HF;
11) Tol2 kit LR reaction (Kwan et al 2007, DOI: 10.1002/dvdy.21343, ). Although the kit is originally aimed at zebrafish, it had already been assayed in mammalian cells. The LR reaction involved the use of Gateway LR Clonase II Plus Enzyme Mix (Invitrogen 12538-120) to fuse 4 plasmids in one: the 5’entry plasmid with a β-actin promoter called p5E-actin (#299), the middle entry plasmid with the VCL insert pME-VCL (wt or mut), the 3’entry plasmid p3E-IRES-nls-GFP (#391) and the destination vector pDestTol2pA2 (#394). The expected LR reaction product is a 14,5 KB eukaryotic expression vector which can be amplified in bacteria.
NEB C3019I bacteria were transformed with the LR reaction product. Three ampicillin-resistant clear colonies of each (β-actin- wt or mutVCL- IRES nclGFP) were chosen and amplified. Minipreps, DNA quantification and diagnostic digestions with (KpnI+AccI) and Pvu-IIHF were carried. Finally, 200 mL of liquid culture were used to prepare MIDIPREPS (XXX). About 180 µg good quality DNA of each (Tol2-GgVCL or Tol2-GgVCL/*TBM) expression vectors were obtained and checked by digestion with restriction enzymes.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Tol2-GgVCL/WT was a gift from Laura Lafon-Hughes (Addgene plasmid # 162787 ; http://n2t.net/addgene:162787 ; RRID:Addgene_162787)
  • For your References section:

    First evidences suggesting a role of a tankyrase-binding motif (TBM) of vinculin (VCL) in epithelial cells. Vilchez-Larrea, S, Valsecchi W, Fernández-Villamil S, and Lafon Hughes L. PeerJ
