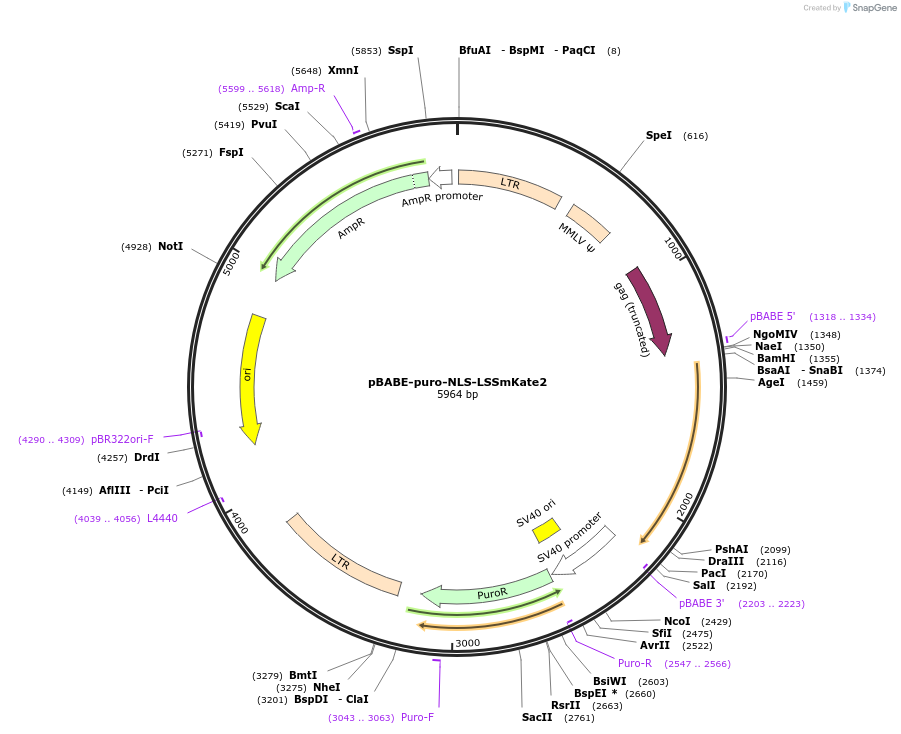

pBABE-puro-NLS-LSSmKate2
(Plasmid #34586)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 34586 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pBABE-puro
  • Backbone size w/o insert (bp) 5169
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NLS-LSS-mKate2
  • Alt name
    Nuclear localization signal-LSS-mKate2
  • Insert Size (bp)
    795
  • Mutation
    K69Y/P131T/S148G/M167D/T183S/M196V compared to mKate but numbering is relative to EGFP.

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pBABE5'
  • 3′ sequencing primer pBABE3'
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

There is an 18bp deletion in Addgene's sequencing results relative to the full plasmid sequence (at position 2174-2192bp). This region is immediately after the LSS-mKate2 gene and is not critical for plasmid performance.

There is also a single nucleotide mismatch that results in an F22S change in the linker between the NLS and LSS-mKate2. It should not have any effect on the fusion performance.

Two other mismatches do not alter amino acid sequence.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBABE-puro-NLS-LSSmKate2 was a gift from Vladislav Verkhusha (Addgene plasmid # 34586 ; http://n2t.net/addgene:34586 ; RRID:Addgene_34586)
  • For your References section:

    Monomeric red fluorescent proteins with a large Stokes shift. Piatkevich KD, Hulit J, Subach OM, Wu B, Abdulla A, Segall JE, Verkhusha VV. Proc Natl Acad Sci U S A. 2010 Mar 23;107(12):5369-74. Epub 2010 Mar 8. 10.1073/pnas.0914365107 PubMed 20212155
