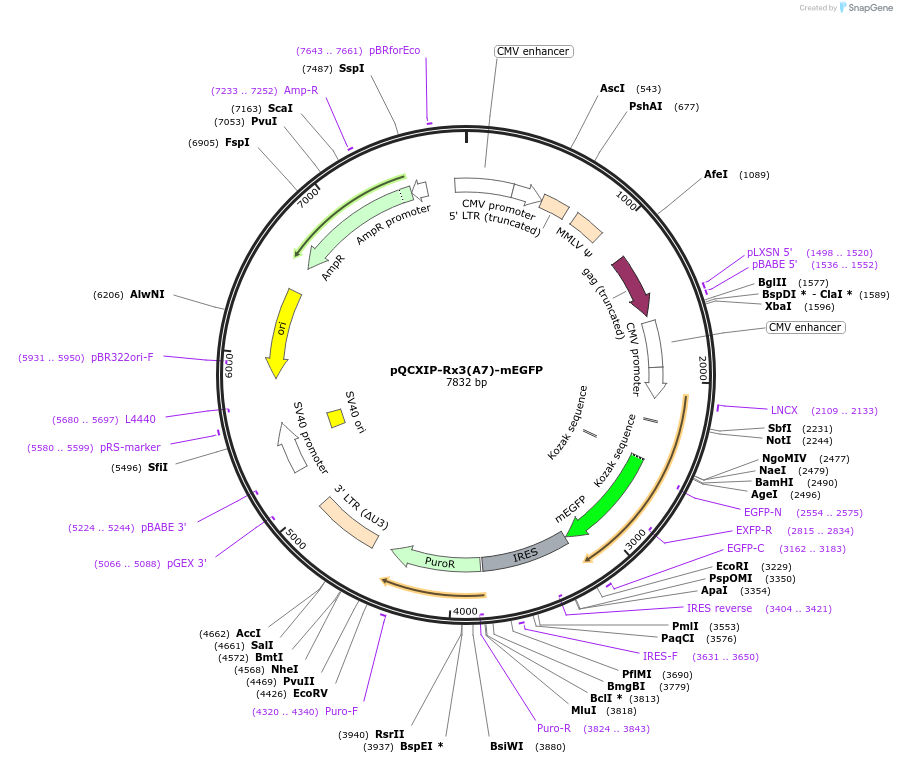

pQCXIP-Rx3(A7)-mEGFP
(Plasmid #35531)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 35531 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pQCXIX
  • Backbone manufacturer
    clontech
  • Backbone size w/o insert (bp) 6300
  • Modifications to backbone
    puro marker added at second MCS
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Rx3(A7)-mEGFP
  • Species
    Synthetic
  • Insert Size (bp)
    981
  • Promoter CMV
  • Tag / Fusion Protein
    • mEGFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Not1 (not destroyed)
  • 3′ cloning site EcoR1 (not destroyed)
  • 5′ sequencing primer CMV Forward
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQCXIP-Rx3(A7)-mEGFP was a gift from Robert Cohen (Addgene plasmid # 35531 ; http://n2t.net/addgene:35531 ; RRID:Addgene_35531)
  • For your References section:

    Polyubiquitin-sensor proteins reveal localization and linkage-type dependence of cellular ubiquitin signaling. Sims JJ, Scavone F, Cooper EM, Kane LA, Youle RJ, Boeke JD, Cohen RE. Nat Methods. 2012 Feb 5. doi: 10.1038/nmeth.1888. 10.1038/nmeth.1888 PubMed 22306808
