pCMV-Neo-Bam DP1
(Plasmid #37968)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 37968 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

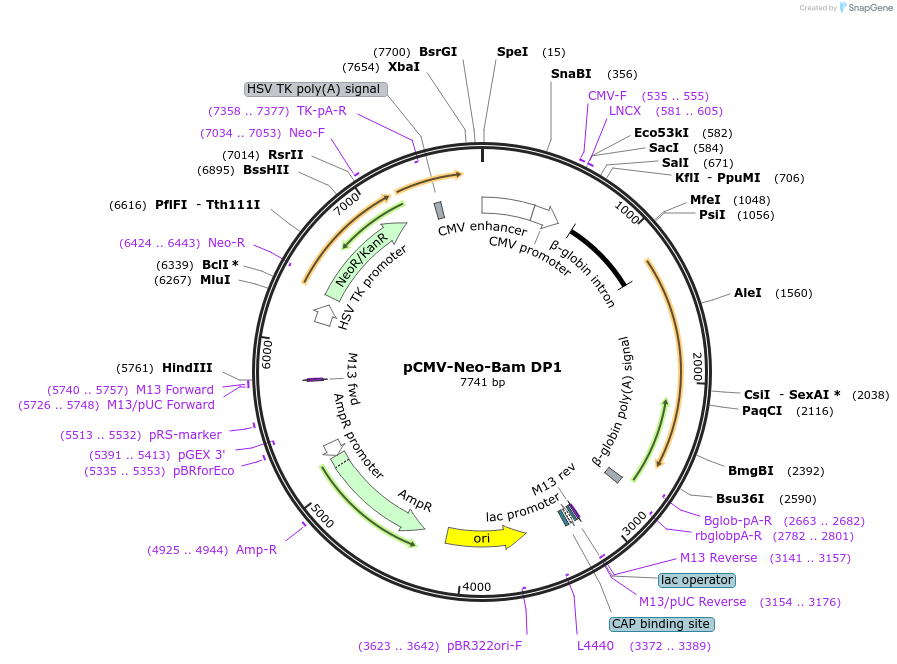

Backbone

  • Vector backbone
    pCMV-Neo-Bam
  • Backbone manufacturer
    Vogelstein Lab
  • Backbone size w/o insert (bp) 6600
  • Total vector size (bp) 8000
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    DP1
  • Alt name
    DRTF1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1300
  • Entrez Gene
    TFDP1 (a.k.a. DILC, DP1, DRTF1, Dp-1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer Bglob-intron-F
  • 3′ sequencing primer Bglob-pA-R
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Helin K, Ed Harlow's laboratory where the principal investigator (J.A.Lees) was working.
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

DP1 functions as a heterodimer with several members of the E2F family of transcription factors.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-Neo-Bam DP1 was a gift from Jacqueline Lees (Addgene plasmid # 37968 ; http://n2t.net/addgene:37968 ; RRID:Addgene_37968)
  • For your References section:

    E2F-4 switches from p130 to p107 and pRB in response to cell cycle reentry. Moberg K, Starz MA, Lees JA. Mol Cell Biol. 1996 Apr;16(4):1436-49. PubMed 8657117
