(Plasmid #45959)


Item Catalog # Description Quantity Price (USD)
Plasmid 45959 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 4777
  • Total vector size (bp) 3878
  • Vector type
    pENTR plasmid

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
    human UBI promoter
  • Alt name
    Ubiquitin c promoter
  • Species
    H. sapiens (human), Synthetic
  • Insert Size (bp)
  • Entrez Gene
    UBC (a.k.a. HMG20)
  • Promoter Ubiquitin

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

More information can be found at

NOTE: There are some discrepancies between Addgene's quality control sequence and the assembled sequence from the depositor. These differences should not affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

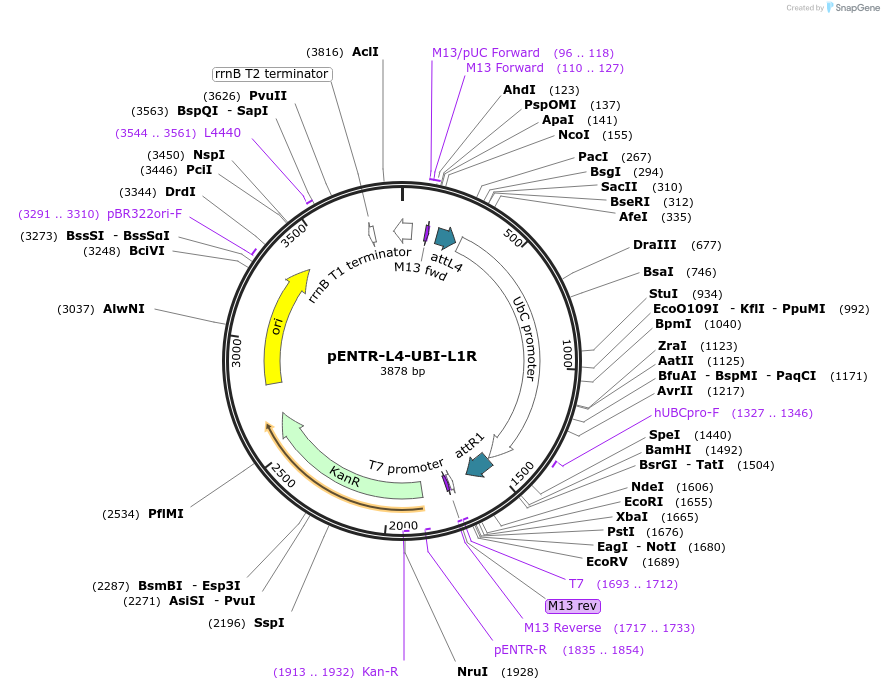

    pENTR-L4-UBI-L1R was a gift from Patrick Salmon (Addgene plasmid # 45959 ; ; RRID:Addgene_45959)
  • For your References section:

    Lentiviral vectors. Giry-Laterriere M, Verhoeyen E, Salmon P. Methods Mol Biol. 2011;737:183-209. doi: 10.1007/978-1-61779-095-9_8. 10.1007/978-1-61779-095-9_8 PubMed 21590398
