Addgene

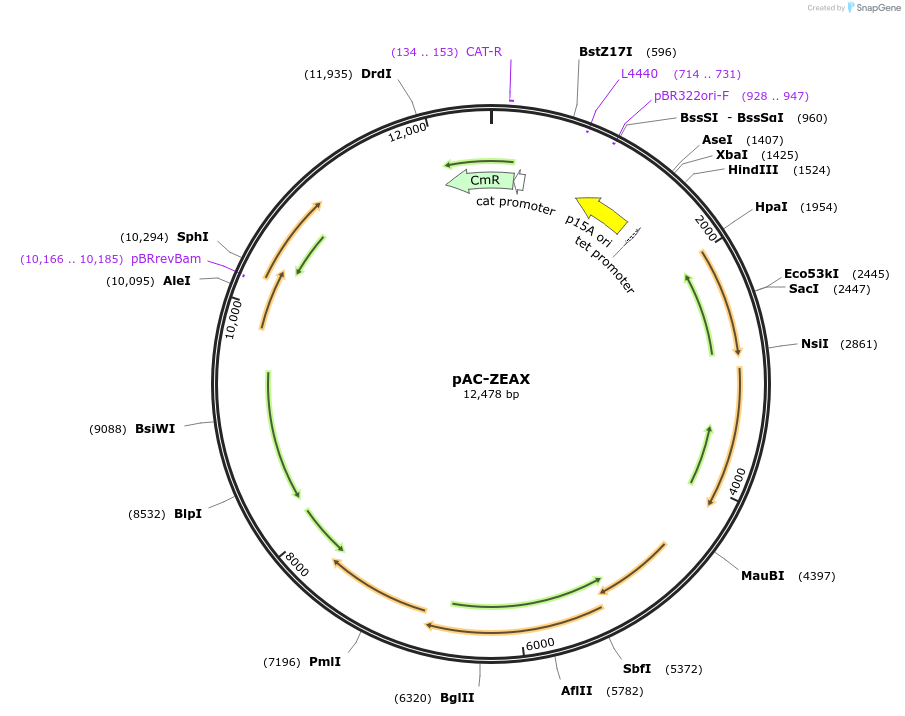

pAC-ZEAX
(Plasmid #53274)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 53274 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAC-EHER
  • Backbone manufacturer
    Francis X. Cunningham, Jr.
  • Backbone size w/o insert (bp) 13581
  • Total vector size (bp) 12478
  • Modifications to backbone
    The plasmid pAC-ZEAX was constructed from pAC-EHER by deletion of a 1.1-kb SalI-SalI fragment containing the Erwinia herbicola Eho10 gene (crtX) encoding zeaxanthin glucosyltransferase. The C terminal end of the idi gene was also deleted, although this was not done purposefully. The function of the product of the idi gene (ORF6), and the salutary effect of IDI on carotenoid production in E. coli were not recognized until later.
  • Vector type
    low copy number bacterial cloning vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Top10
  • Growth instructions
    Grow liquid cultures on a platform shaker at 28 degrees Celsius for 2-3 days in darkness for best zeaxanthin production, or grow on agar plates at room temperature for 3-7 days.
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    crtE, crtY, crtI, crtB, crtZ
  • Species
    Erwinia herbicola Eho10
  • Mutation
    Deleted idi (ORF6) and crtX genes
  • GenBank ID
    M87280.1
  • Promoter endogenous promoters

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NA (unknown if destroyed)
  • 3′ cloning site NA (unknown if destroyed)
  • 5′ sequencing primer none
  • 3′ sequencing primer none
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For better yield of low copy number pAC-based plasmids, grow liquid cultures on a platform shaker at ca. 30 degrees Celsius. When cultures reach early stationary phase, dilute 2-fold with growth medium, add spectinomycin (150 mg/liter), and "amplify" for several hours before harvest. For plasmid selection and maintenance in E. coli, use chloramphenicol at 30 mg/liter.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAC-ZEAX was a gift from Francis X Cunningham Jr (Addgene plasmid # 53274 ; http://n2t.net/addgene:53274 ; RRID:Addgene_53274)
  • For your References section:

    Cloning and functional analysis of the beta-carotene hydroxylase of Arabidopsis thaliana. Sun Z, Gantt E, Cunningham FX Jr. J Biol Chem. 1996 Oct 4;271(40):24349-52. PubMed 8798688
