pReporter_5
(Plasmid #60566)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 60566 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    unknown
  • Total vector size (bp) 4305
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Reporter_5
  • Alt name
    attB-GFPmut3-RiboJ-attP
  • Species
    Synthetic
  • Promoter BBa_J23119

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

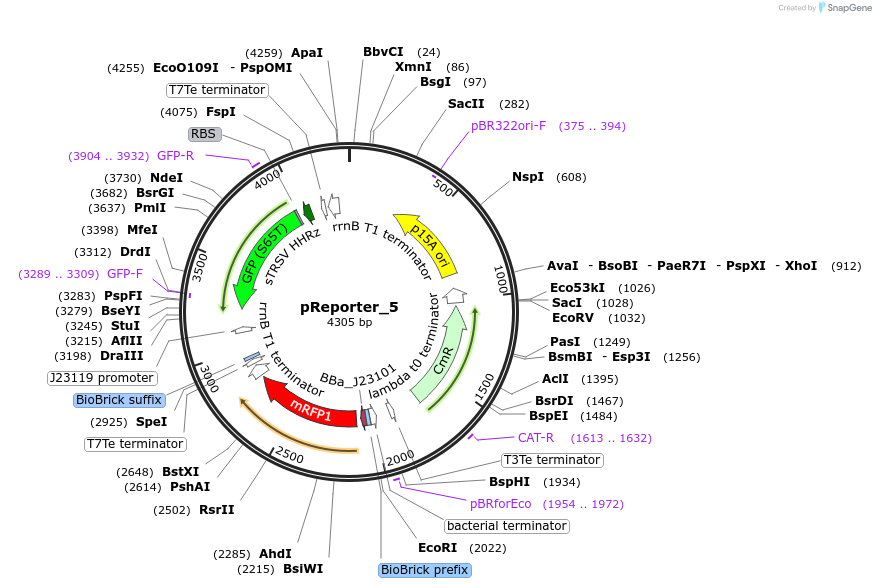

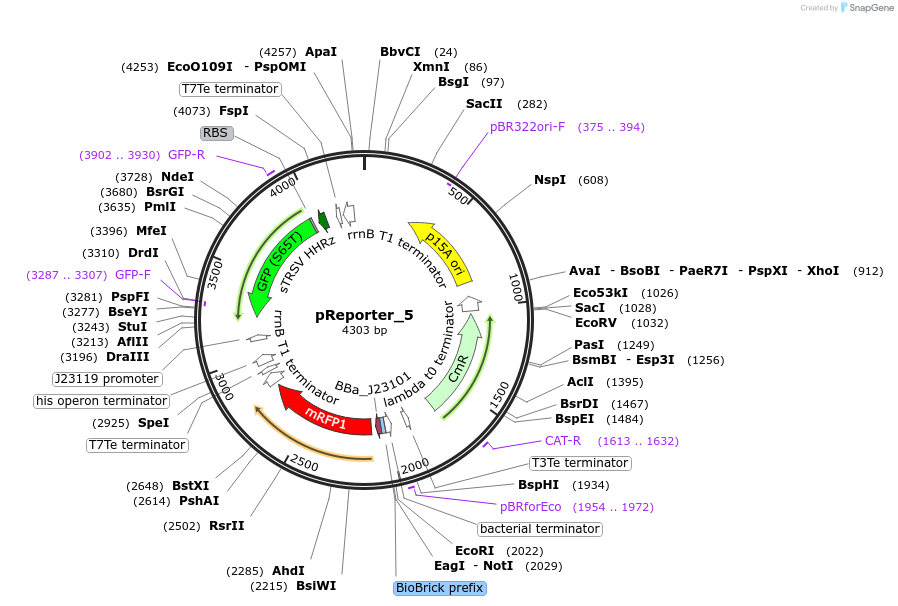

This reporter plasmid contains the attB and attP sites flanking a green fluorescent protein reporter gene (gfp). A strong constitutive promoter (BBa_J23119) is placed upstream of the attB site, which transcribes in the opposite orientation as gfp. After the integrase is expressed, the orientation of gfp is inverted and it is transcribed. After inversion, recombined attB and attP sites result in the formation of attL and attR. The attL site is located on the 5'UTR and could impact gfp expression. To insulate against this effect, we included a spacer and the ribozyme RiboJ.
Also contains mRFP in order to aid the gating of cells.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pReporter_5 was a gift from Christopher Voigt (Addgene plasmid # 60566 ; http://n2t.net/addgene:60566 ; RRID:Addgene_60566)
  • For your References section:

    Permanent genetic memory with >1-byte capacity. Yang L, Nielsen AA, Fernandez-Rodriguez J, McClune CJ, Laub MT, Lu TK, Voigt CA. Nat Methods. 2014 Dec;11(12):1261-6. doi: 10.1038/nmeth.3147. Epub 2014 Oct 26. 10.1038/nmeth.3147 PubMed 25344638
