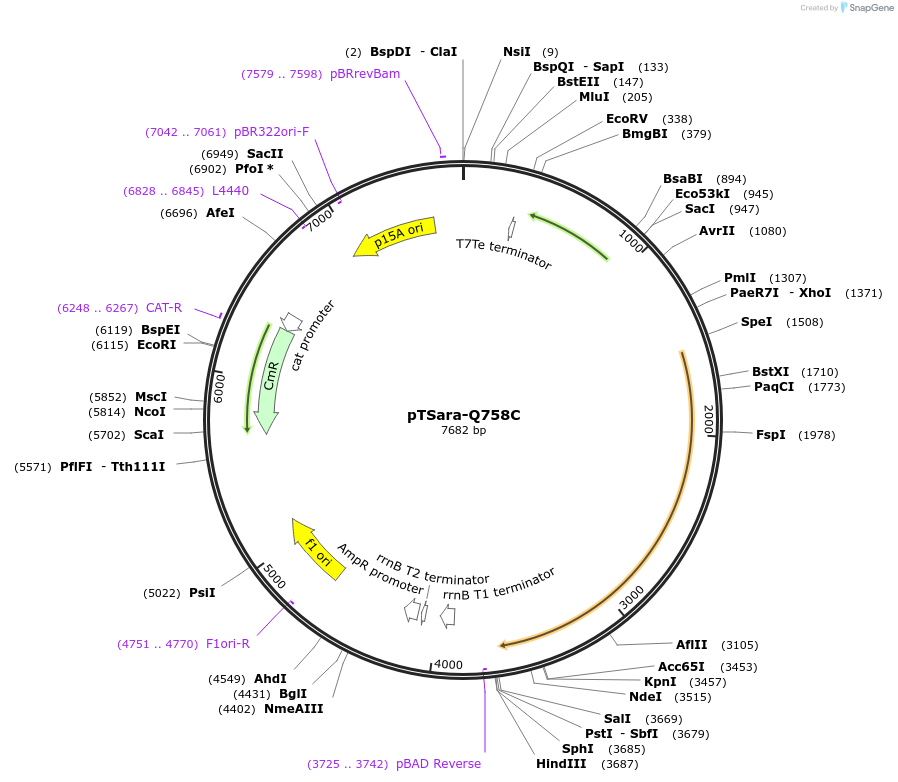

pTSara-Q758C
(Plasmid #60724)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 60724 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pBAD33
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 7600
  • Modifications to backbone
    IPTG inducible promoter PLac drives expression 1-179 of split T7 RNAP while the arabinose promoter PBAD drives expression 180-880.
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    Residues 1-179 of split T7 RNAP
  • Species
    Synthetic; T7 Phage
  • Insert Size (bp)
    540
  • Mutation
    Residues 1-180 of split T7 RNAP
  • GenBank ID
    GI:216012

Gene/Insert 2

  • Gene/Insert name
    Residues 180-880 of split T7 RNAP
  • Species
    Synthetic
  • Insert Size (bp)
    2118
  • Mutation
    Residues 180-880 of split T7 RNAP. Contains mutation Q758C.
  • GenBank ID
    GI:216012

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTSara-Q758C was a gift from Matthew Bennett (Addgene plasmid # 60724 ; http://n2t.net/addgene:60724 ; RRID:Addgene_60724)
  • For your References section:

    Library of synthetic transcriptional AND gates built with split T7 RNA polymerase mutants. Shis DL, Bennett MR. Proc Natl Acad Sci U S A. 2013 Mar 26;110(13):5028-33. doi: 10.1073/pnas.1220157110. Epub 2013 Mar 11. 10.1073/pnas.1220157110 PubMed 23479654
