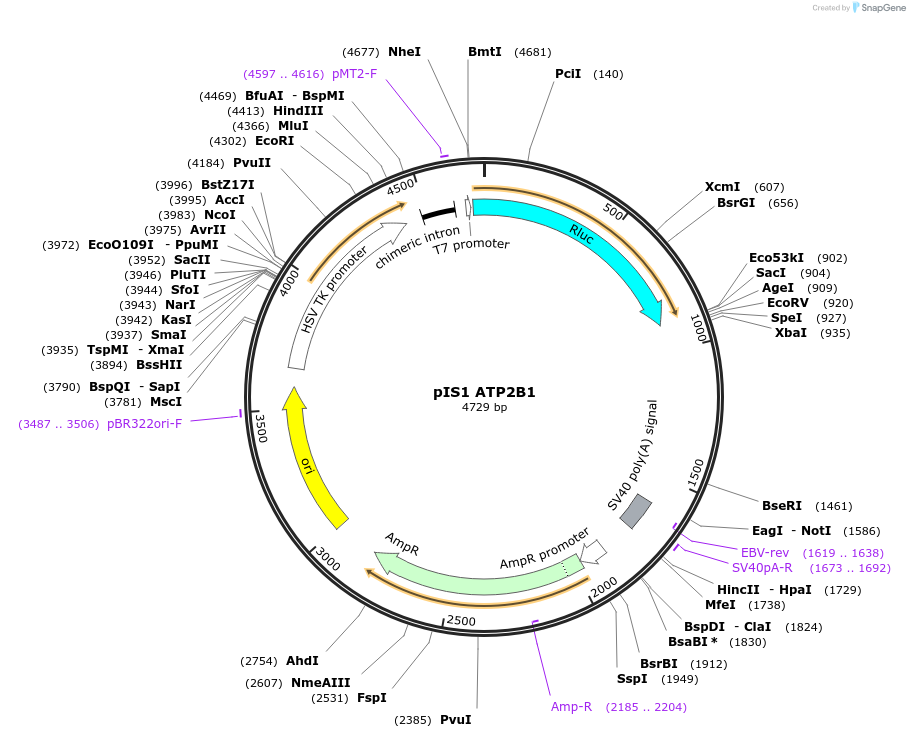

pIS1 ATP2B1
(Plasmid #60788)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 60788 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pIS1
  • Backbone manufacturer
    Bartel lab (Addgene plasmid # 12179)
  • Backbone size w/o insert (bp) 4085
  • Vector type
    Mammalian Expression, Luciferase

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ATP2B1 3'UTR and wild-type miR-155 binding site
  • Species
    H. sapiens (human)
  • Entrez Gene
    ATP2B1 (a.k.a. PMCA1, PMCA1kb)
  • Promoter thymidine kinase (HSV-TK promoter)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer chim-int-F (5'-TCTTACTGACATCCACTTTGCC-3') to confirm luciferase
  • 3′ sequencing primer EBV-rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pIS1 ATP2B1 was a gift from David Bartel (Addgene plasmid # 60788 ; http://n2t.net/addgene:60788 ; RRID:Addgene_60788)
  • For your References section:

    Global analyses of the effect of different cellular contexts on microRNA targeting. Nam JW, Rissland OS, Koppstein D, Abreu-Goodger C, Jan CH, Agarwal V, Yildirim MA, Rodriguez A, Bartel DP. Mol Cell. 2014 Mar 20;53(6):1031-43. doi: 10.1016/j.molcel.2014.02.013. Epub 2014 Mar 13. 10.1016/j.molcel.2014.02.013 PubMed 24631284
