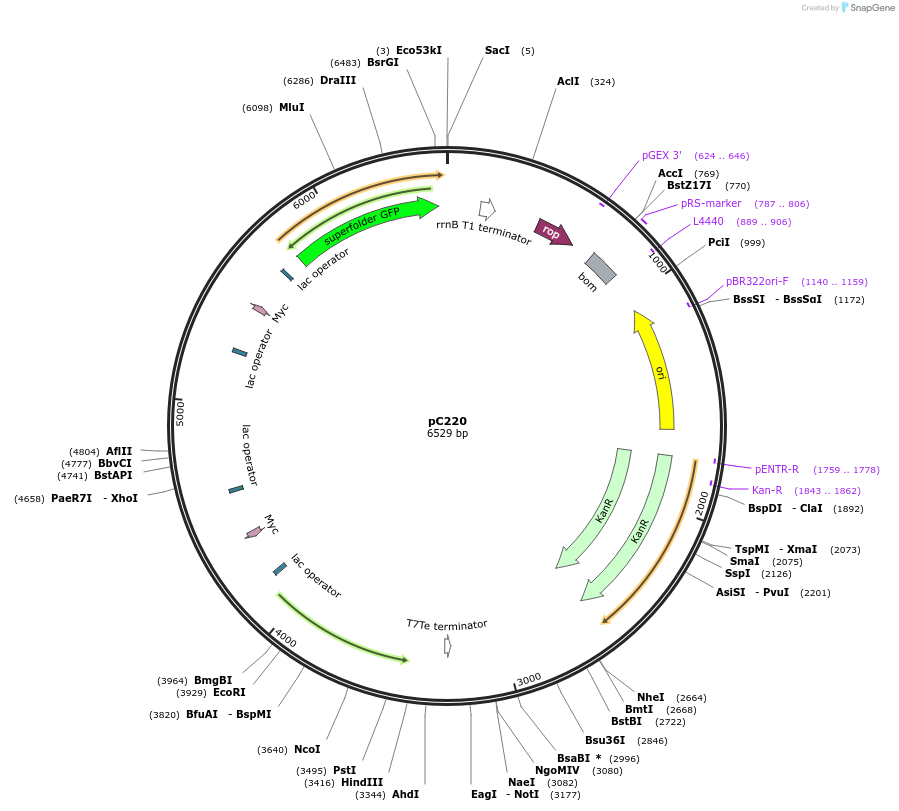

pC220
(Plasmid #65877)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 65877 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    PMB1+ROP
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Growth instructions
    A LacIq is necessary for growing up.
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    RhlI
  • Insert Size (bp)
    645
  • Mutation
    LAA tagged
  • Entrez Gene
    rhlI (a.k.a. PA3476)
  • Promoter Prhl/lac

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer gagaaaactagtatgatcgaattgctctctgaatcgctg
  • 3′ sequencing primer taggggaagcttttattacgctgcaagggcgtaattttcgtcgttcgctgc
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pC220 was a gift from Matthew Bennett (Addgene plasmid # 65877 ; http://n2t.net/addgene:65877 ; RRID:Addgene_65877)
  • For your References section:

    SYNTHETIC BIOLOGY. Emergent genetic oscillations in a synthetic microbial consortium. Chen Y, Kim JK, Hirning AJ, Josic K, Bennett MR. Science. 2015 Aug 28;349(6251):986-9. doi: 10.1126/science.aaa3794. 10.1126/science.aaa3794 PubMed 26315440
