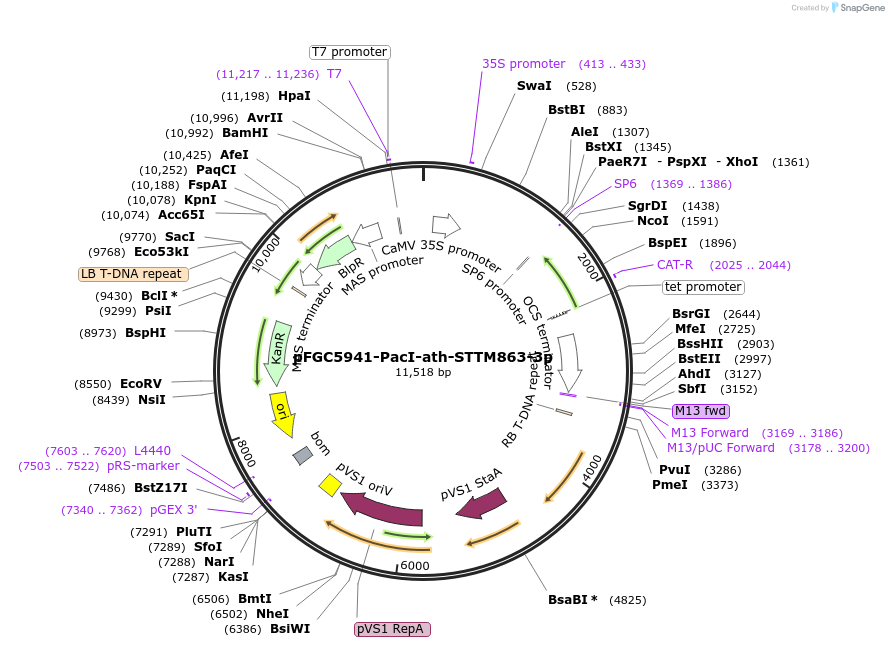

pFGC5941-PacI-ath-STTM863-3p
(Plasmid #84182)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 84182 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pFGC5941-PacI
  • Backbone manufacturer
    Guiliang Tang (Addgene plasmid # 44182)
  • Backbone size w/o insert (bp) 8608
  • Vector type
    Plant Expression
  • Selectable markers
    Basta

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol and Kanamycin, 25 & 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    STTM863-3p
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    2846
  • Promoter 2x35S

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PacI (not destroyed)
  • 3′ cloning site PacI (not destroyed)
  • 5′ sequencing primer CACTATCCTTCGCAAGACCCTTCC
  • 3′ sequencing primer CAACACATGAGCGAAACCCTATAA
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The insert within this plasmid contains a 2x35S promoter, STTM, T35S and CmR.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFGC5941-PacI-ath-STTM863-3p was a gift from Guiliang Tang (Addgene plasmid # 84182 ; http://n2t.net/addgene:84182 ; RRID:Addgene_84182)
  • For your References section:

    Construction of short tandem target mimic (STTM) to block the functions of plant and animal microRNAs. Tang G, Yan J, Gu Y, Qiao M, Fan R, Mao Y, Tang X. Methods. 2012 Oct;58(2):118-25. doi: 10.1016/j.ymeth.2012.10.006. Epub 2012 Oct 23. 10.1016/j.ymeth.2012.10.006 PubMed 23098881
