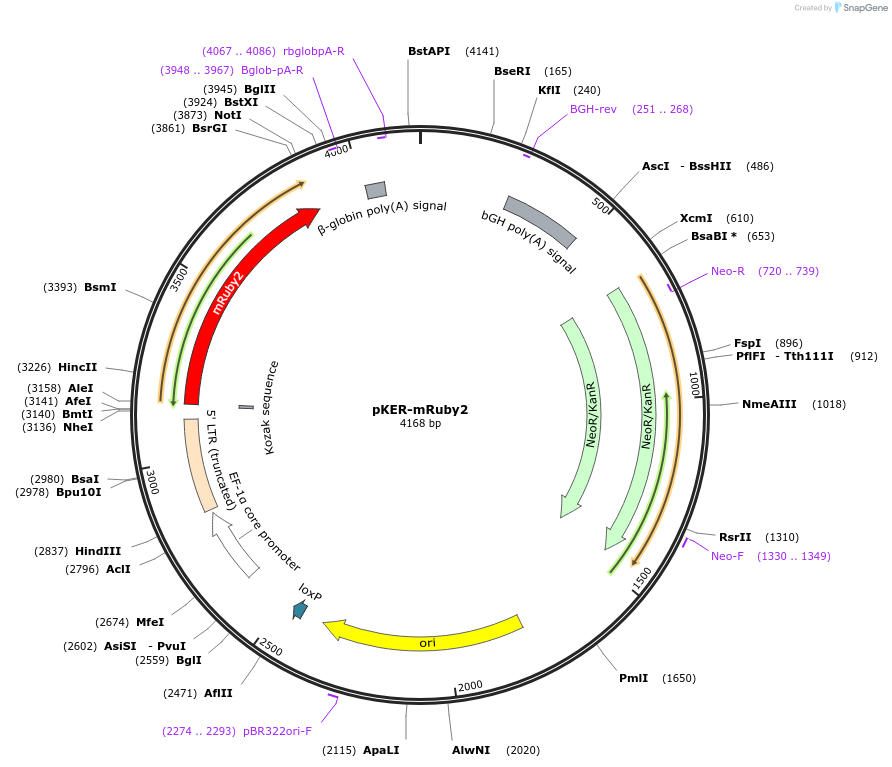

pKER-mRuby2
(Plasmid #85977)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 85977 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pKER
  • Backbone manufacturer
    Calos Lab
  • Total vector size (bp) 4168
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mRuby2
  • Insert Size (bp)
    714
  • Promoter EF-1a

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer cgccgttacagatccaagctgt
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKER-mRuby2 was a gift from Michele Calos (Addgene plasmid # 85977 ; http://n2t.net/addgene:85977 ; RRID:Addgene_85977)
  • For your References section:

    In vivo blunt-end cloning through CRISPR/Cas9-facilitated non-homologous end-joining. Geisinger JM, Turan S, Hernandez S, Spector LP, Calos MP. Nucleic Acids Res. 2016 Jan 13. pii: gkv1542. 10.1093/nar/gkv1542 PubMed 26762978
