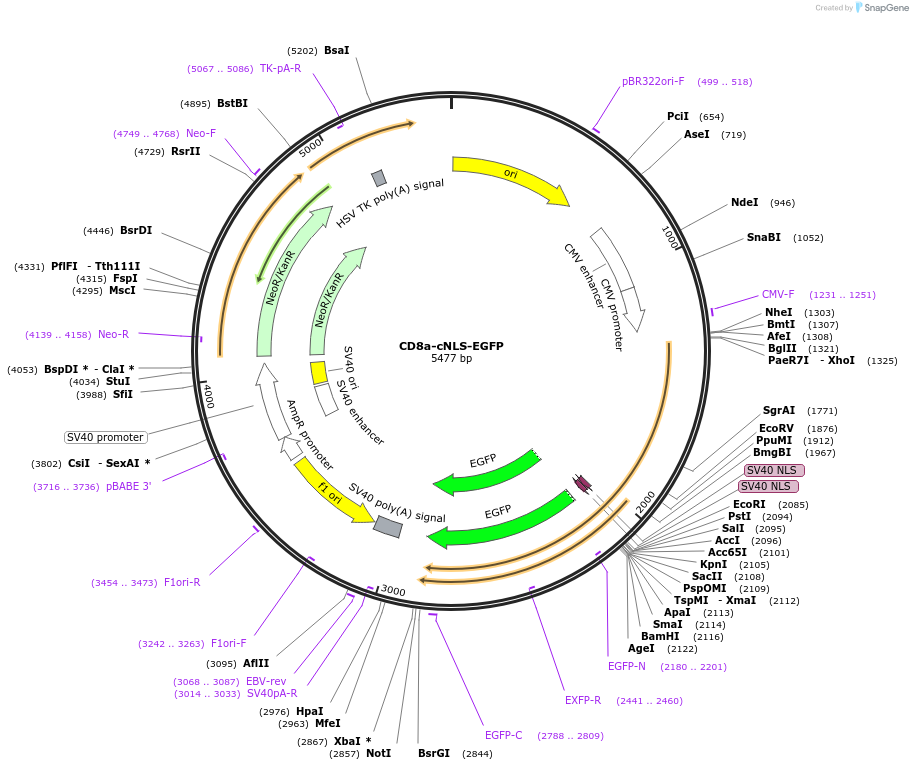

CD8a-cNLS-EGFP
(Plasmid #86052)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 86052 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CD8a
  • Species
    H. sapiens (human)
  • Mutation
    CD8a luminal and transmembrane along with two SV40 large T antigen classical NLS sequence from 126-132 amino acids
  • Entrez Gene
    CD8A (a.k.a. CD8, CD8alpha, Leu2, p32)
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CD8a-cNLS-EGFP was a gift from Lei Lu (Addgene plasmid # 86052 ; http://n2t.net/addgene:86052 ; RRID:Addgene_86052)
  • For your References section:

    A ternary complex comprising transportin1, Rab8 and the ciliary targeting signal directs proteins to ciliary membranes. Madugula V, Lu L. J Cell Sci. 2016 Oct 15;129(20):3922-3934. Epub 2016 Sep 15. 10.1242/jcs.194019 PubMed 27633000
