pTE4565
(Plasmid #88903)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 88903 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

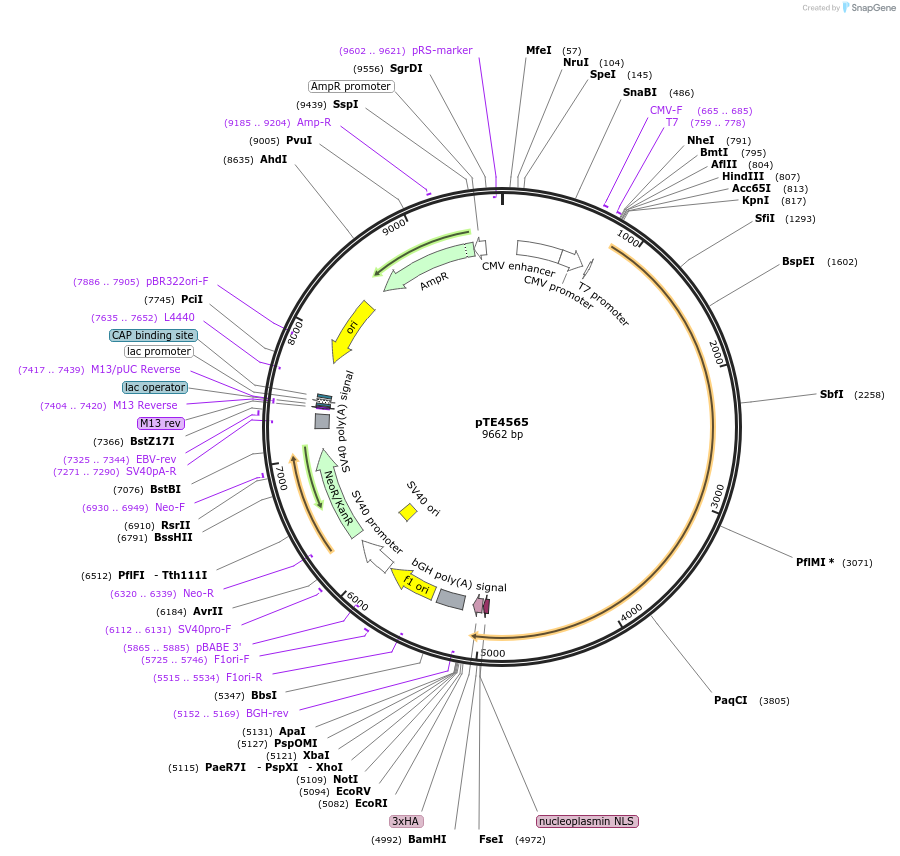

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5405
  • Total vector size (bp) 9662
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hMbCpf1(D986A)
  • Alt name
    Moraxella bovoculi humanized Cpf1 nuclease, D986A inactive/dead mutant
  • Insert Size (bp)
    4119
  • Promoter CMV
  • Tags / Fusion Proteins
    • NLS (C terminal on insert)
    • 3xHA (C terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTE4565 was a gift from Ervin Welker (Addgene plasmid # 88903 ; http://n2t.net/addgene:88903 ; RRID:Addgene_88903)
  • For your References section:

    Mb- and FnCpf1 nucleases are active in mammalian cells: activities and PAM preferences of four wild-type Cpf1 nucleases and of their altered PAM specificity variants. Toth E, Czene BC, Kulcsar PI, Krausz SL, Talas A, Nyeste A, Varga E, Huszar K, Weinhardt N, Ligeti Z, Borsy AE, Fodor E, Welker E. Nucleic Acids Res. 2018 Sep 20. pii: 5103950. doi: 10.1093/nar/gky815. 10.1093/nar/gky815 PubMed 30239882
