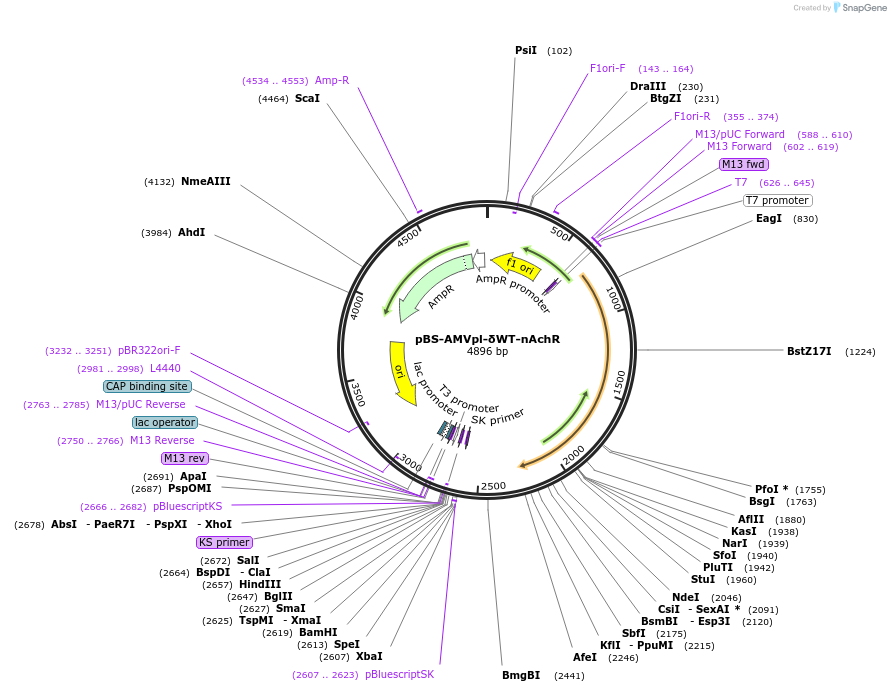

pBS-AMVpl-δWT-nAchR
(Plasmid #97188)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 97188 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pBluescript KS+
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 2964
  • Total vector size (bp) 4746
  • Modifications to backbone
    NA
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Delta nicotinic acetylcholine receptor
  • Alt name
    δWT-nAchR
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1563
  • Mutation
    WT
  • GenBank ID
    NM-021600
  • Entrez Gene
    Chrnd (a.k.a. Achr-4, Acrd, L10076)
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoR V (unknown if destroyed)
  • 3′ cloning site BstX1 (unknown if destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer pBSKSreverse(+) primer
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Lester Lab

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBS-AMVpl-δWT-nAchR was a gift from Henry Lester (Addgene plasmid # 97188 ; http://n2t.net/addgene:97188 ; RRID:Addgene_97188)
  • For your References section:

    Channel gating governed symmetrically by conserved leucine residues in the M2 domain of nicotinic receptors. Labarca C, Nowak MW, Zhang H, Tang L, Deshpande P, Lester HA. Nature. 1995 Aug 10. 376(6540):514-6. 10.1038/376514a0 PubMed 7637783
