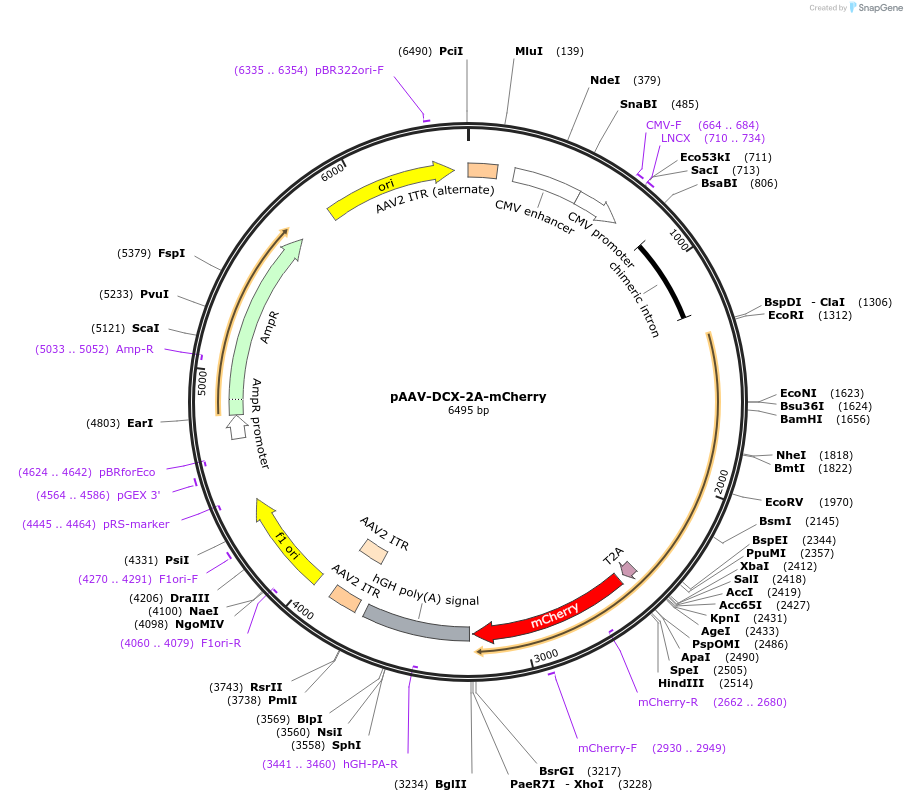

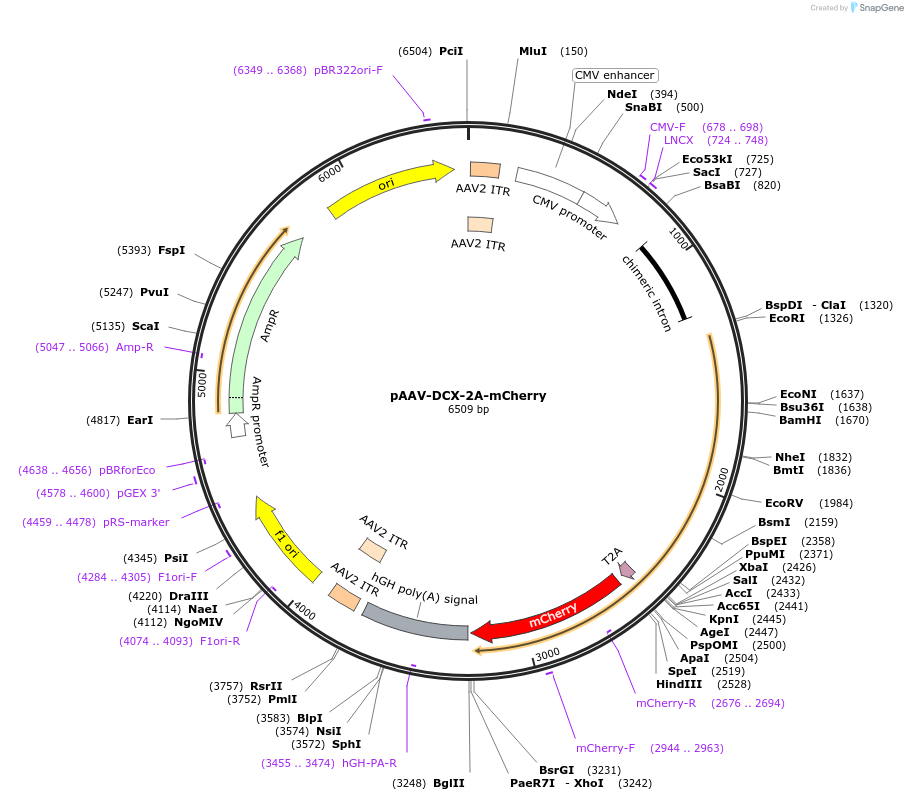

pAAV-DCX-2A-mCherry
(Plasmid #118290)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 118290 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAAV-2A-mCherry
  • Backbone size w/o insert (bp) 5429
  • Total vector size (bp) 6509
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    doublecortin
  • Alt name
    DCX
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1080
  • GenBank ID
    NM_178151.2
  • Entrez Gene
    DCX (a.k.a. DBCN, DC, LISX, SCLH, XLIS)
  • Promoter CMV with beta global intron
  • Tags / Fusion Proteins
    • 2A peptide (C terminal on insert)
    • mCherry (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PCR insert with BglII, ligated to BamHI on the vector (destroyed during cloning)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer GGCAAAGAATTGGGATTCGA
  • 3′ sequencing primer TTCAGCTTGGCGGTCTGGGT
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-DCX-2A-mCherry was a gift from Vance Lemmon (Addgene plasmid # 118290 ; http://n2t.net/addgene:118290 ; RRID:Addgene_118290)
  • For your References section:

    Dyrk kinases regulate phosphorylation of doublecortin, cytoskeletal organization, and neuronal morphology. Slepak TI, Salay LD, Lemmon VP, Bixby JL. Cytoskeleton (Hoboken). 2012 Jul;69(7):514-27. doi: 10.1002/cm.21021. Epub 2012 Mar 7. 10.1002/cm.21021 PubMed 22359282
