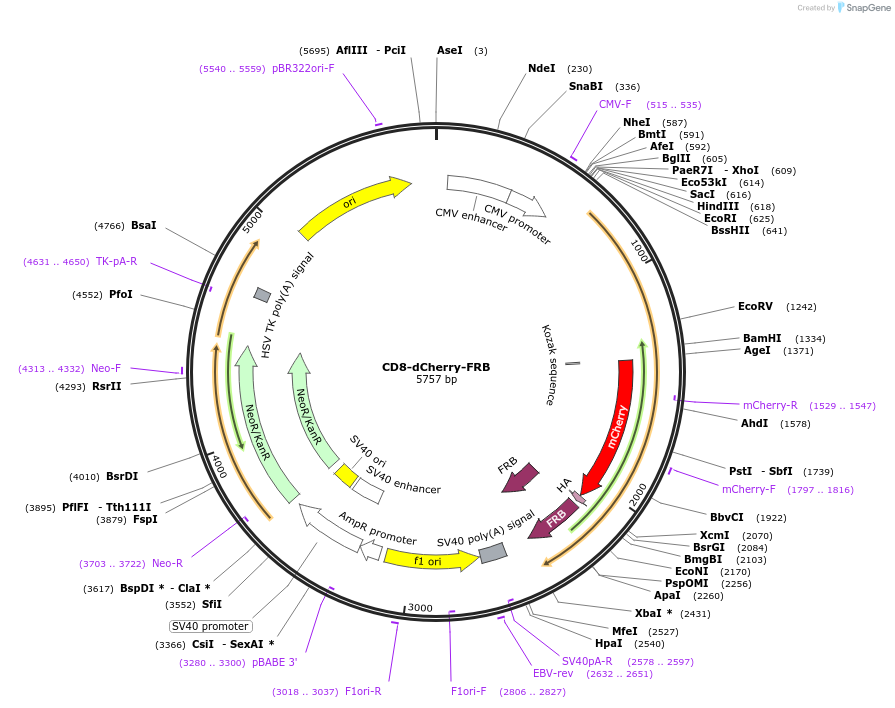

CD8-dCherry-FRB
(Plasmid #100739)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 100739 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pmCherry-N1
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CD8A
  • Alt name
    CD8 alpha chain
  • Species
    H. sapiens (human)
  • Mutation
    Dark mCherry (K70N) non-fluorescent
  • Entrez Gene
    CD8A (a.k.a. CD8, CD8alpha, Leu2, p32)
  • Promoter CMV
  • Tags / Fusion Proteins
    • dCherry (C terminal on insert)
    • FRB (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer CMV Forward
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CD8-dCherry-FRB was a gift from Stephen Royle (Addgene plasmid # 100739 ; http://n2t.net/addgene:100739 ; RRID:Addgene_100739)
  • For your References section:

    New tools for "hot-wiring" clathrin-mediated endocytosis with temporal and spatial precision. Wood LA, Larocque G, Clarke NI, Sarkar S, Royle SJ. J Cell Biol. 2017 Sep 27. pii: jcb.201702188. doi: 10.1083/jcb.201702188. 10.1083/jcb.201702188 PubMed 28954824
