PurposesgRNA/Cas9 expression plasmid with Cas9 VQR mutations (NGA PAM)
-
Depositing Lab
-
Depositing OrganizationJohns Hopkins University and School of Medicine
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 101715 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 101715-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 101715-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepx459 v2
- Total vector size (bp) 9175
-
Vector typeMammalian Expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpCas9 VQR
-
SpeciesS pyogenes
-
MutationVQR (D1135V, R1335Q and T1337R)
-
Tags
/ Fusion Proteins
- 3xFLAG-NLS (N terminal on insert)
- NLS (C terminal on insert)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/182840v1 for bioRxiv preprint.
DNA (Catalog # 101715-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 101715-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
px459 VQR was a gift from Andrew Holland (Addgene plasmid # 101715 ; http://n2t.net/addgene:101715 ; RRID:Addgene_101715) -
For your References section:
Applying the auxin-inducible degradation system for rapid protein depletion in mammalian cells. Lambrus BG, Moyer TC, Holland AJ. Methods Cell Biol. 2018;144:107-135. doi: 10.1016/bs.mcb.2018.03.004. Epub 2018 Apr 5. 10.1016/bs.mcb.2018.03.004 PubMed 29804665

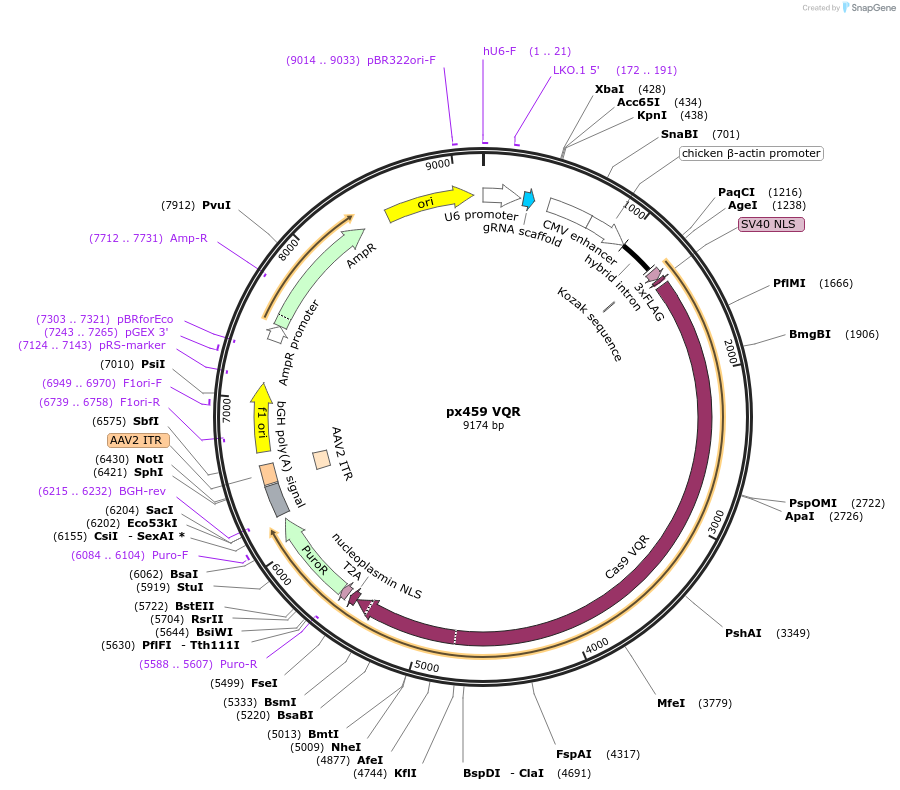

Map uploaded by the depositor.
