Depositing Lab
-
Depositing OrganizationJohns Hopkins University and School of Medicine
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 46266 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 46266-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 46266-D100 | 100 μg of DNA in Tris buffer | $585 | ||

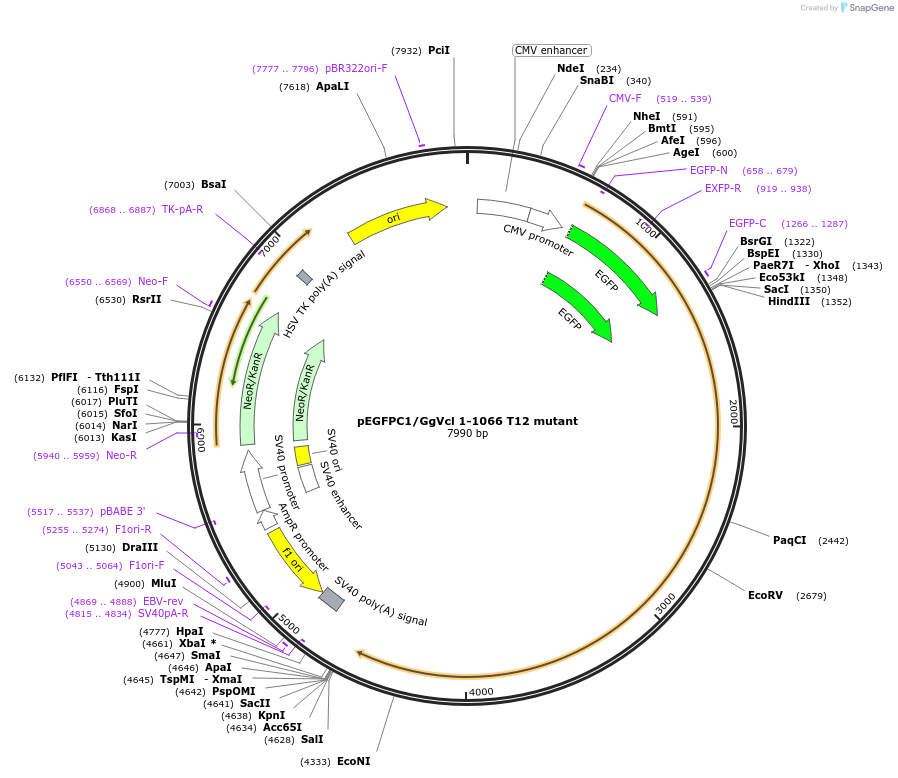

Backbone
-
Vector backbonepEGFP-C1
-
Backbone manufacturerClonetech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 7990
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameVcl T12 mutant
-
Alt nameVinculin
-
Alt nameVcl
-
SpeciesG. gallus (chicken)
-
Insert Size (bp)3259
-
MutationT12 mutant (D974;K975;R976; R978A) autoinhibition decreased by 100x
-
GenBank IDNM_205441.1
-
Entrez GeneVCL (a.k.a. VINC1)
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer EGFP-C
- 3′ sequencing primer SV40pA-R
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
T12 mutation introduced by QuikChange PCR to Addgene plasmid 46265.
Mutant inhibits vinculin autoinhibition by ~ 100 fold, vinculin is partially activated and will bind talin, but not actin (unless both talin and actin are present at same time).
DNA (Catalog # 46266-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 46266-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEGFPC1/GgVcl 1-1066 T12 mutant was a gift from Susan Craig (Addgene plasmid # 46266 ; http://n2t.net/addgene:46266 ; RRID:Addgene_46266) -
For your References section:
Two distinct head-tail interfaces cooperate to suppress activation of vinculin by talin. Cohen DM, Chen H, Johnson RP, Choudhury B, Craig SW. J Biol Chem. 2005 Apr 29;280(17):17109-17. Epub 2005 Feb 22. 10.1074/jbc.M414704200 PubMed 15728584
