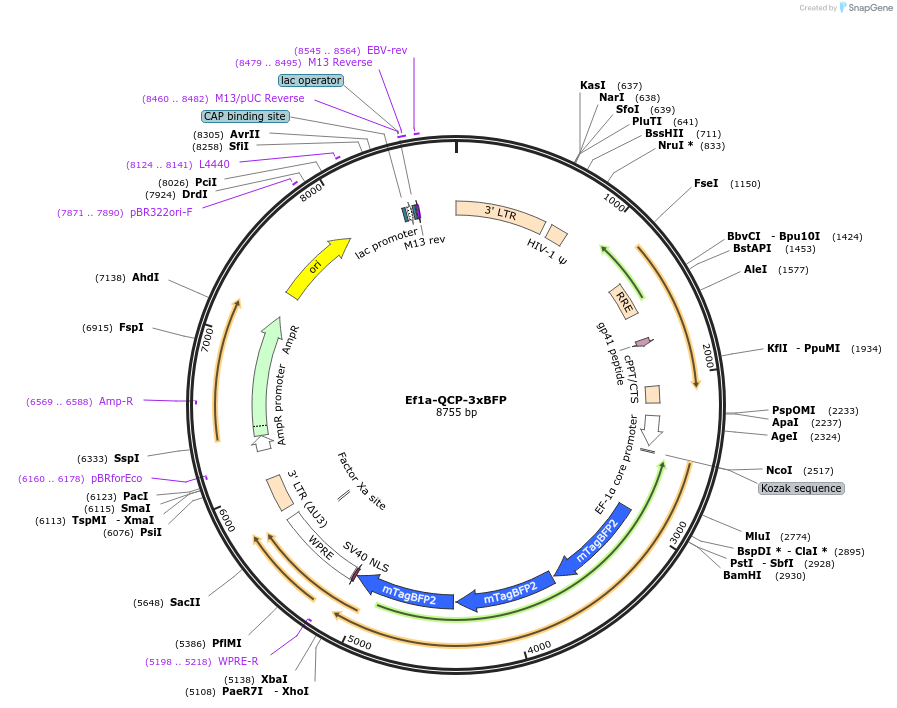

Ef1a-QCP-3xBFP
(Plasmid #158206)

• Purpose: Qb coat protein fused to three repeats of the blue fluorescent protein under a Efla promoter.
• Depositing Lab: Roee Amit
• Depositing Organization: Technion Research and Development Foundation
  Located in Israel
• Publication: Katz et al Nat Commun. 2021 Mar 11;12(1):1576. doi: 10.1038/s41467-021-21578-6.

Backbone

• Vector backbone: Addgene number 75384
• Modifications to backbone: Instead of the MS2 coat protein we inserted a QB coat protein sequence.
• Vector type: Mammalian Expression, Synthetic Biology

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: QCP under the Elfa promoter and three BFP tags
• Species: Synthetic
• Promoter: Elfa
• Tag / Fusion Protein:
  • 3xBFP (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: AscI (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: CGCCGTGAACGTTCTTTTTCGCAACG

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Evrogen Limited Use Label License for FPs
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Addgene NGS result found different linkers between the BFP's when compared to the backbone #75384. The depositor confirmed they observed strong BFP fluorescence and the different linkers are not a concern.

DNA (Catalog # 158206-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Evrogen Limited Use Label License for FPs
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 158206-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Evrogen Limited Use Label License for FPs
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
