pAi14-GFPNLS-MC
(Plasmid
#87114)
-
Purposeminicircle parental backbone plasmid including GFPNLS-pA knock-in donor and one cutting site for HITI
-
Depositing Lab
-
Depositing OrganizationSalk Institute for Biological Studies
Located in United States of America -
Citations
-

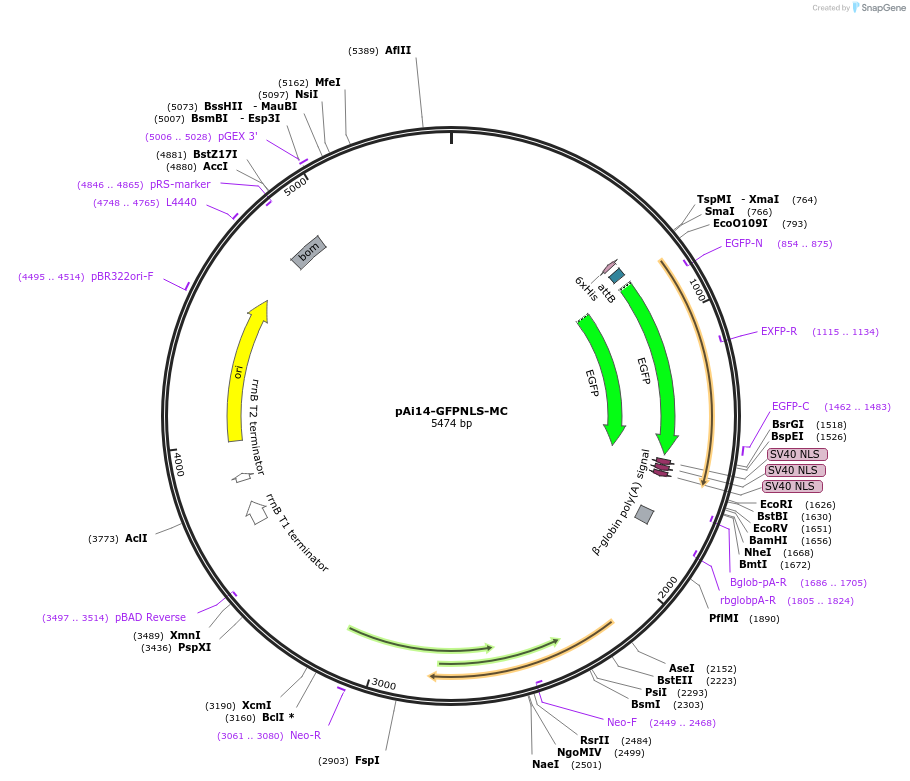

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 87114 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 87114-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 87114-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepMC.BESPX
-
Vector typeCRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGFPNLSPpA
-
SpeciesSynthetic
- Promoter nEF
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer unknown
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
It is neccesary to remove plasmid backbone with minicircle technology ( https://www.systembio.com/minicircle-dna-vectors/overview ).
DNA (Catalog # 87114-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 87114-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAi14-GFPNLS-MC was a gift from Juan Belmonte (Addgene plasmid # 87114 ; http://n2t.net/addgene:87114 ; RRID:Addgene_87114) -
For your References section:
In vivo genome editing via CRISPR/Cas9 mediated homology-independent targeted integration. Suzuki K, Tsunekawa Y, Hernandez-Benitez R, Wu J, Zhu J, Kim EJ, Hatanaka F, Yamamoto M, Araoka T, Li Z, Kurita M, Hishida T, Li M, Aizawa E, Guo S, Chen S, Goebl A, Soligalla RD, Qu J, Jiang T, Fu X, Jafari M, Esteban CR, Berggren WT, Lajara J, Nunez-Delicado E, Guillen P, Campistol JM, Matsuzaki F, Liu GH, Magistretti P, Zhang K, Callaway EM, Zhang K, Belmonte JC. Nature. 2016 Dec 1;540(7631):144-149. doi: 10.1038/nature20565. Epub 2016 Nov 16. 10.1038/nature20565 PubMed 27851729
