LTRi with neomycin
(Plasmid
#16160)
-
Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 16160 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-

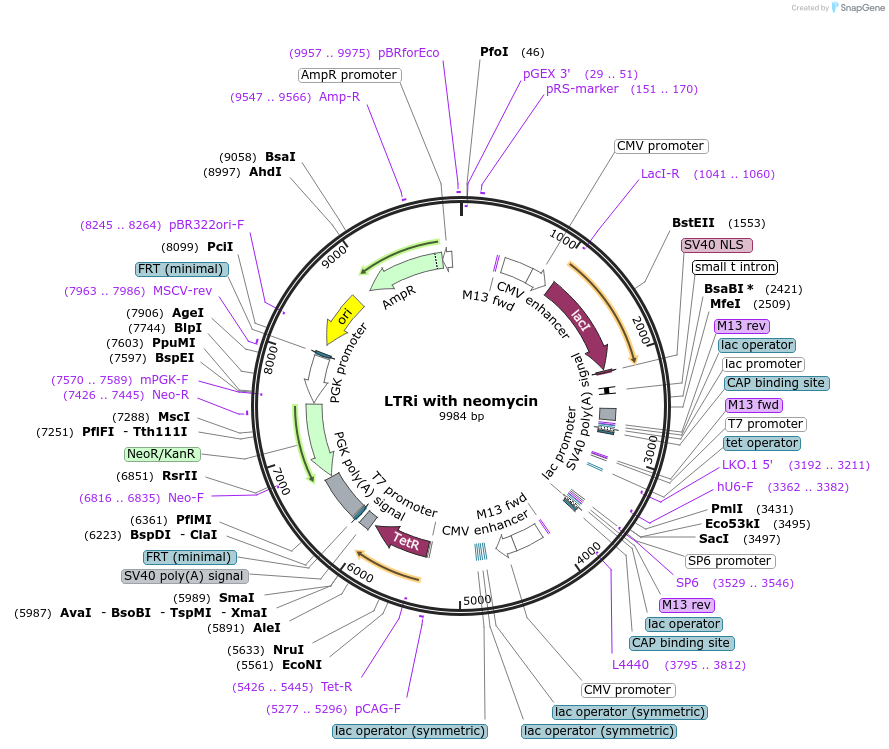

Vector backboneLTRi with neomycin
- Backbone size (bp) 9984
-
Vector typeMammalian Expression, Synthetic Biology
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer na (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
We engineered a tunable genetic switch called LTRi, which stands for Lac-Tet-RNAi. Gene expression is turned on by adding an inducer, isopropyl-β-thiogalactopyranoside (IPTG). See article for details.
Clone your gene of interest into the Transgene Module http://www.addgene.org/15916 and then move it into LTRi with Neomycin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LTRi with neomycin was a gift from James Collins (Addgene plasmid # 16160) -
For your References section:
A tunable genetic switch based on RNAi and repressor proteins for regulating gene expression in mammalian cells. Deans TL, Cantor CR, Collins JJ. Cell. 2007 Jul 27. 130(2):363-72. 10.1016/j.cell.2007.05.045 PubMed 17662949
