pHIV-EGFP
(Plasmid #21373)

• Purpose: (Empty Backbone) self-inactivating lentiviral plasmid for co-expression of your gene of interest and EGFP
• Depositing Labs: Bryan Welm, Zena Werb
• Publication: Welm et al Cell Stem Cell. 2008 Jan 10. 2(1):90-102.

Backbone

• Vector backbone: pSICO
• Backbone size (bp): 6900
• Vector type: Mammalian Expression, Lentiviral

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): Stbl3
• Growth instructions: Growth in Stbl3 is preferred
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: None

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NA (unknown if destroyed)
• 3′ cloning site: NA (unknown if destroyed)
• 5′ sequencing primer: 5'-TGGAATTTGCCCTTTTTGAG-3'
• 3′ sequencing primer: 5'-AGGAACTGCTTCCTTCACGA-3'

Resource Information

• A portion of this plasmid was derived from a plasmid made by: EGFP was from Clontech and pSICO was from Tyler Jacks.
• Articles Citing this Plasmid:
  • 38 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

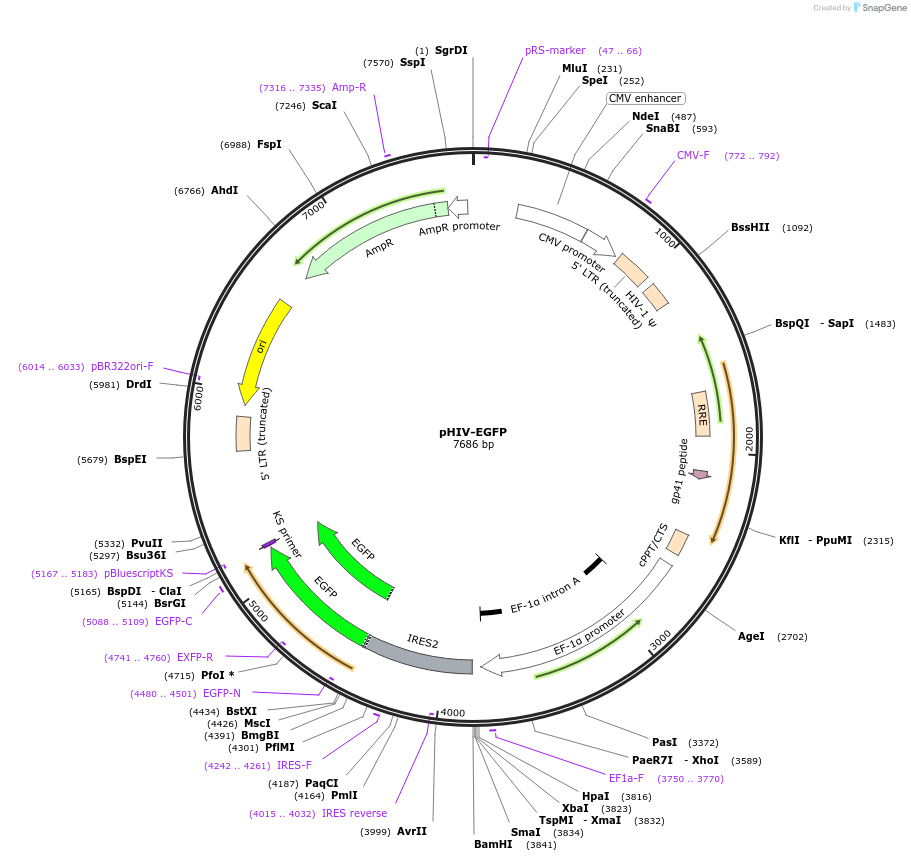

HIV-EGFP is a self-inactivating lentiviral plasmid that was cloned by removing the U6-TATAlox-CMVie-EGFP-TATAlox- WPRE content of pSICO (Ventura et al., 2004), and adding the EF1-alpha promoter, a multiple cloning site (MCS), an internal ribosome entry site (IRES) and EGFP. A cDNA can be cloned into the MCS (HpaI, XbaI, SmaI, and BamHI sites) to enable bicistronic expression with EGFP. This construct was described in the publication: Cell Stem Cell. 2008 Jan 10. 2(1):90-102.

Information for Cloning Grade DNA (Catalog # 21373-DNA.cg) ( Back to top )

Purpose

Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.

Delivery

• Amount: 2 µg
• Guaranteed Concentration: 100 ng/µl +/- 5 ng/µl
• Pricing: $105 USD
• Storage: DNA can be stored at 4℃ (short term) or -20℃ (long term).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
