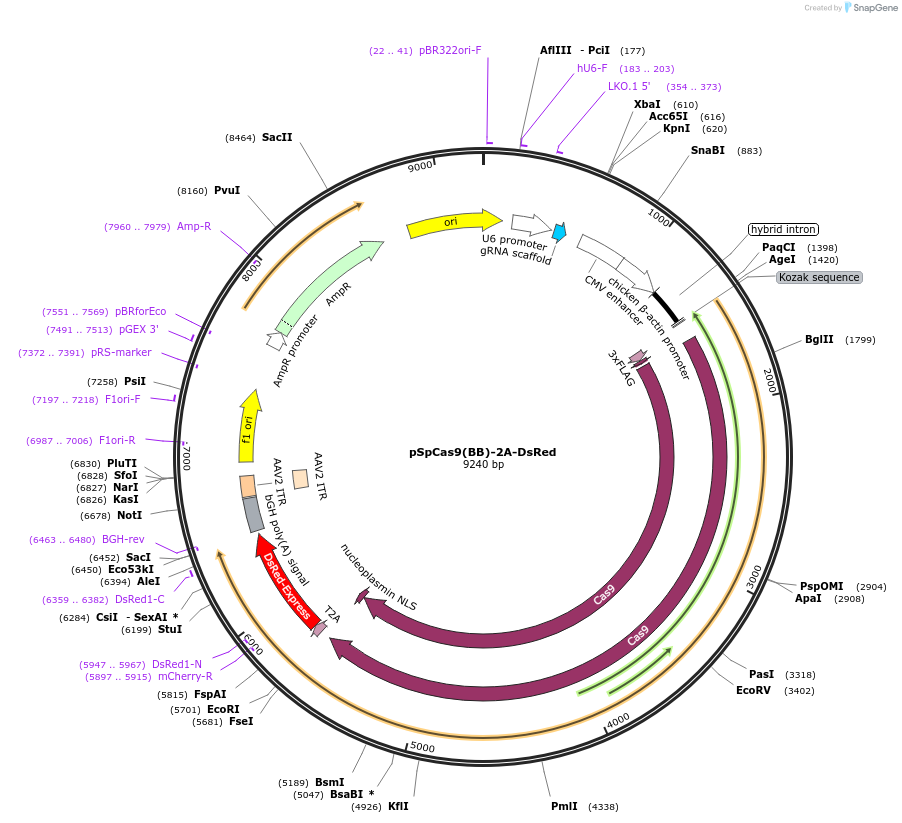

pSpCas9(BB)-2A-DsRed
(Plasmid #107915)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 107915 Standard format: Plasmid sent in bacteria as agar stab 1 $94

Backbone

  • Vector backbone
    PX458
  • Total vector size (bp) 9300
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hSpCas9
  • Alt name
    SpCas9-2A-DsRed
  • Alt name
    Cas9
  • Species
    Synthetic
  • Insert Size (bp)
    5400
  • Mutation
    Removed SacI site in Cas9, removed AatII and BbsI site in DsRed
  • Promoter Cbh
  • Tags / Fusion Proteins
    • 3XFLAG (N terminal on insert)
    • DsRed (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer TTTATGGCGAGGCGGCGG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Modified from pSpCas9(BB)-2A-GFP (PX458) (Plasmid #48138).

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Original eGFP vector was obtained from Addgene and the eGFP was replaced with DsRed.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSpCas9(BB)-2A-DsRed was a gift from Antonio Sanz-Clemente (Addgene plasmid # 107915)
