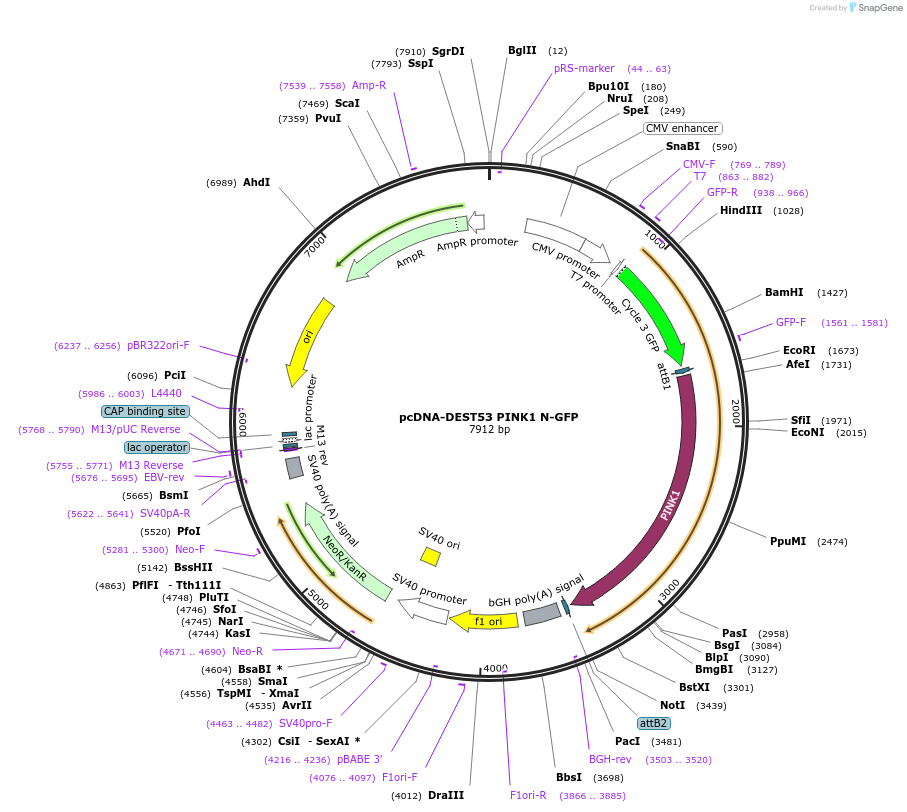

pcDNA-DEST53 PINK1 N-GFP
(Plasmid #13315)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 13315 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 13315-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 13315-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pcDNA-DEST53
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 7767
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PINK1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1743
  • Entrez Gene
    PINK1 (a.k.a. BRPK, PARK6)
  • Tag / Fusion Protein
    • GFP (N terminal on backbone)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ cloning site attR1 (not destroyed)
  • 3′ cloning site attR2 (not destroyed)
  • 5′ sequencing primer na
  • 3′ sequencing primer BGH-rev
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that there is a mismatch in the linker region sequence between GFP and PINK; the amino acids WP are replaced with SG. This change does not affect any of the ORFs or features.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA-DEST53 PINK1 N-GFP was a gift from Mark Cookson (Addgene plasmid # 13315 ; http://n2t.net/addgene:13315 ; RRID:Addgene_13315)

  • For your References section:

    Mutations in PTEN-induced putative kinase 1 associated with recessive parkinsonism have differential effects on protein stability. Beilina A, Van Der Brug M, Ahmad R, Kesavapany S, Miller DW, Petsko GA, Cookson MR. Proc Natl Acad Sci U S A. 2005 Apr 19. 102(16):5703-8. 10.1073/pnas.0500617102 PubMed 15824318
