pcDNA4/TO-BcRF1-2xStrep
(Plasmid
#138436)
-
PurposeExpresses full-length BcRF1 with a C-terminal 2xStrep tag in mammalian cells
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Berkeley
Located in United States of America -

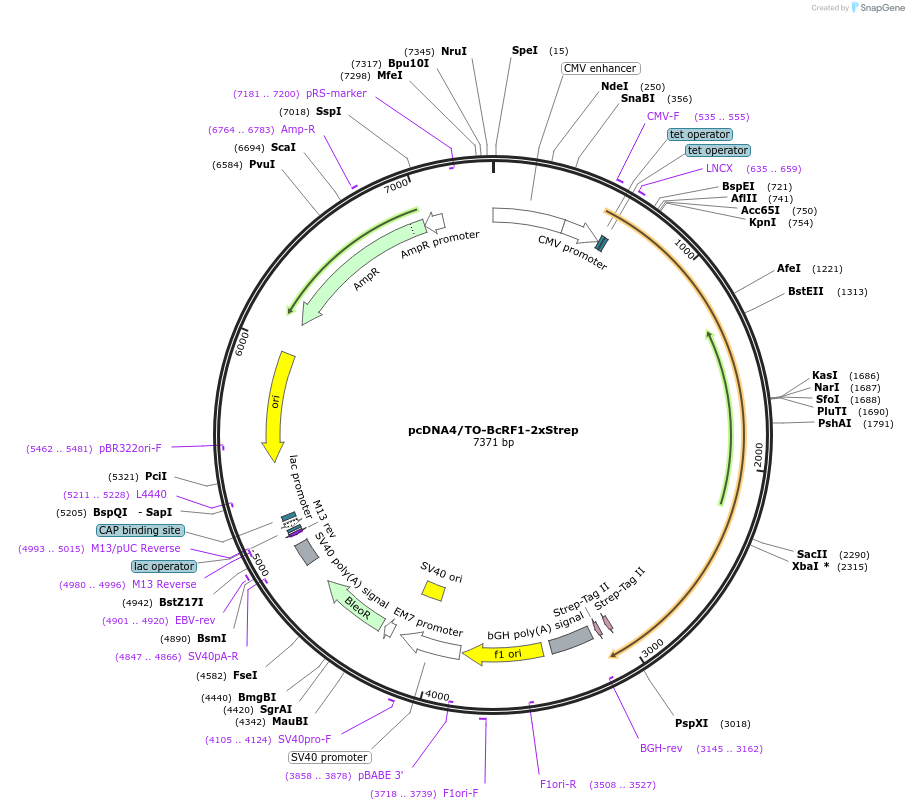

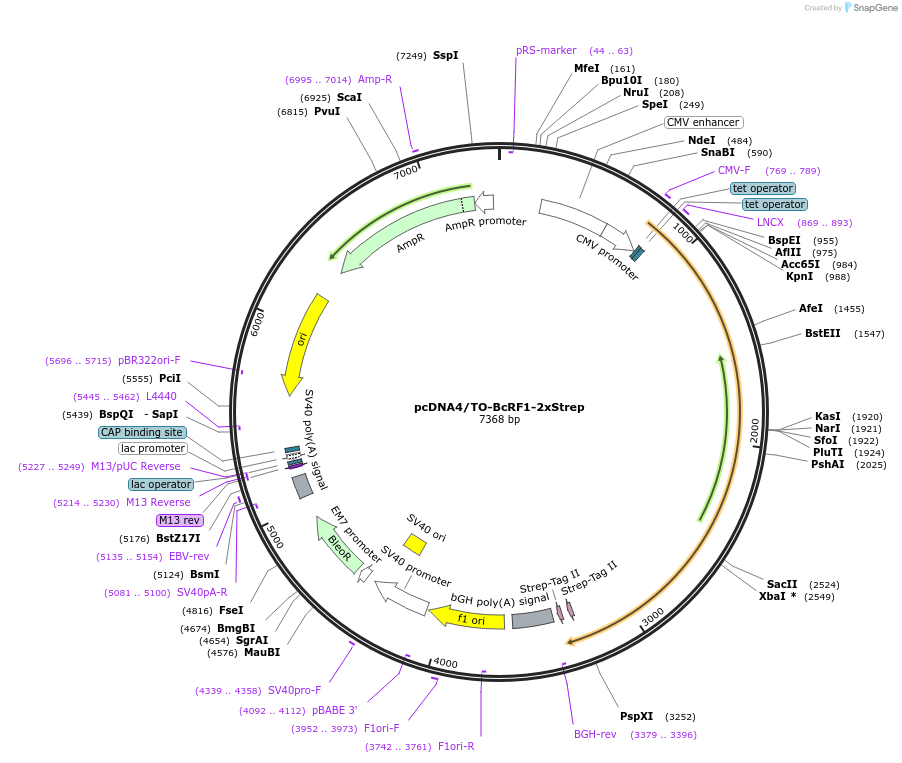

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 138436 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 138436-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 138436-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA4/TO
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5118
- Total vector size (bp) 7371
-
Vector typeMammalian Expression
-
Selectable markersZeocin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameBcRF1
-
SpeciesEBV (HHV-4)
-
Insert Size (bp)2250
-
Entrez GeneBcRF1 (a.k.a. HHV4_BcRF1.2)
- Promoter CMV
-
Tag
/ Fusion Protein
- Strep (C terminal on backbone)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer TAGAAGGCACAGTCGAGG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 138436-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 138436-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA4/TO-BcRF1-2xStrep was a gift from Britt Glaunsinger (Addgene plasmid # 138436 ; http://n2t.net/addgene:138436 ; RRID:Addgene_138436) -
For your References section:
The gammaherpesviral TATA-box-binding protein directly interacts with the CTD of host RNA Pol II to direct late gene transcription. Castaneda AF, Didychuk AL, Louder RK, McCollum CO, Davis ZH, Nogales E, Glaunsinger BA. PLoS Pathog. 2020 Sep 4;16(9):e1008843. doi: 10.1371/journal.ppat.1008843. eCollection 2020 Sep. 10.1371/journal.ppat.1008843 PubMed 32886723
