pFLAG Caronte (CT#304)
(Plasmid
#13860)
-
Depositing Lab
-
Depositing OrganizationHarvard Medical School
Located in the United States of America -
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 13860 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 13860-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 13860-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepFLAG CMV 5c
-
Backbone manufacturerSigma
- Backbone size w/o insert (bp) 4700
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCaronte
-
Alt namecar
-
SpeciesG. gallus (chicken)
-
Insert Size (bp)800
-
Entrez GeneCER1 (a.k.a. CAR)
-
Tag
/ Fusion Protein
- flag (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer CMV-F
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 13860-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 13860-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pFLAG Caronte (CT#304) was a gift from Cliff Tabin (Addgene plasmid # 13860 ; http://n2t.net/addgene:13860 ; RRID:Addgene_13860) -
For your References section:
Antagonistic signaling by Caronte, a novel Cerberus-related gene, establishes left-right asymmetric gene expression. Yokouchi Y, Vogan KJ, Pearse RV, Tabin CJ. Cell. 1999 Sep 3. 98(5):573-83. 10.1016/S0092-8674(00)80045-8 PubMed 10490097

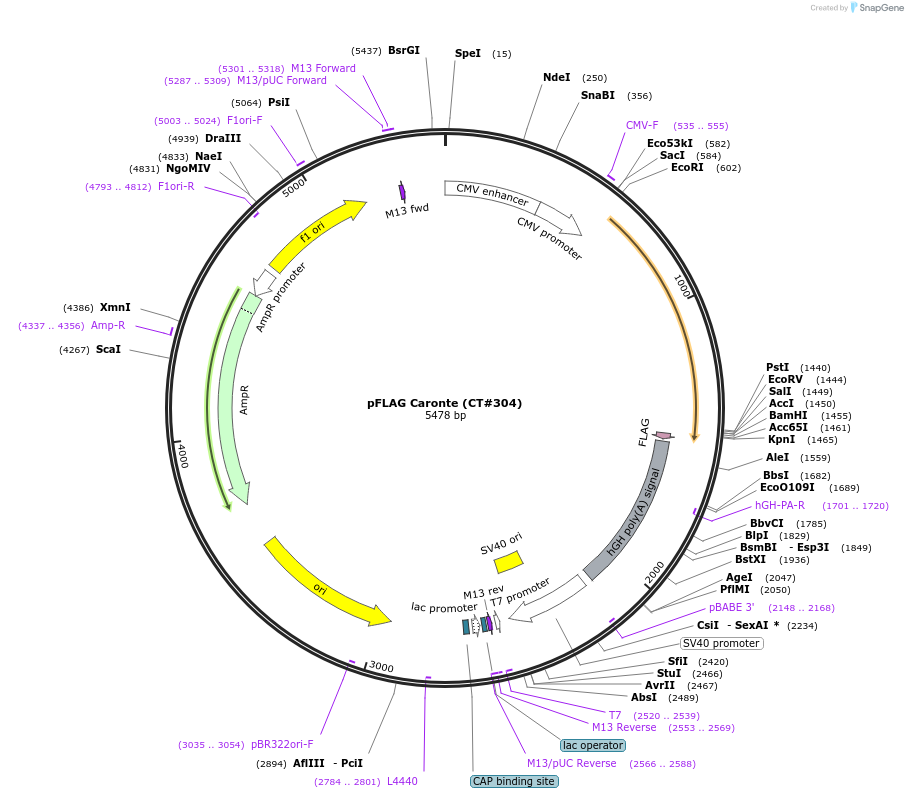

Map uploaded by the depositor.
