GFP-JIP3
(Plasmid #164624)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 164624 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 164624-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 164624-D100 100 μg of DNA in Tris buffer $585
Add to Cart

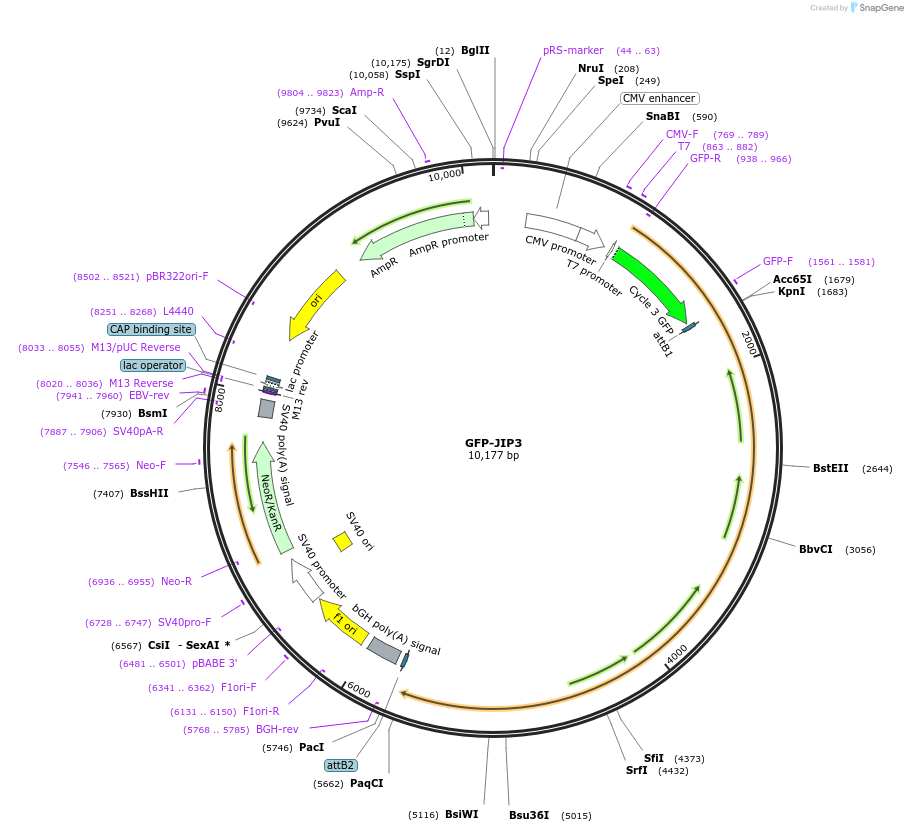

Backbone

  • Vector backbone
    pDEST53
  • Backbone size w/o insert (bp) 7767
  • Total vector size (bp) 10171
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    JIP3
  • Alt name
    C-Jun-amino-terminal kinase-interacting protein 3
  • Alt name
    MAPK8IP3
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    5692
  • GenBank ID
    NM_015133.4 NM_015133.4
  • Entrez Gene
    MAPK8IP3 (a.k.a. JIP-3, JIP3, JSAP1, NEDBA, SYD2, syd)
  • Promoter CMV
  • Tag / Fusion Protein
    • cycle 3 GFP (N terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer atgatggagatccagatggacgaggg
  • 3′ sequencing primer tcactcgggggtgtaggacacctgccacacga
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GFP-JIP3 was a gift from Mark Cookson (Addgene plasmid # 164624 ; http://n2t.net/addgene:164624 ; RRID:Addgene_164624)

  • For your References section:

    LRRK2 mediates tubulation and vesicle sorting from lysosomes. Bonet-Ponce L, Beilina A, Williamson CD, Lindberg E, Kluss JH, Saez-Atienzar S, Landeck N, Kumaran R, Mamais A, Bleck CKE, Li Y, Cookson MR. Sci Adv. 2020 Nov 11;6(46). pii: 6/46/eabb2454. doi: 10.1126/sciadv.abb2454. Print 2020 Nov. 10.1126/sciadv.abb2454 PubMed 33177079
