pEGFP-GFP11-Actin
(Plasmid #181966)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 181966 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 181966-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 181966-D100 100 μg of DNA in Tris buffer $585
Add to Cart

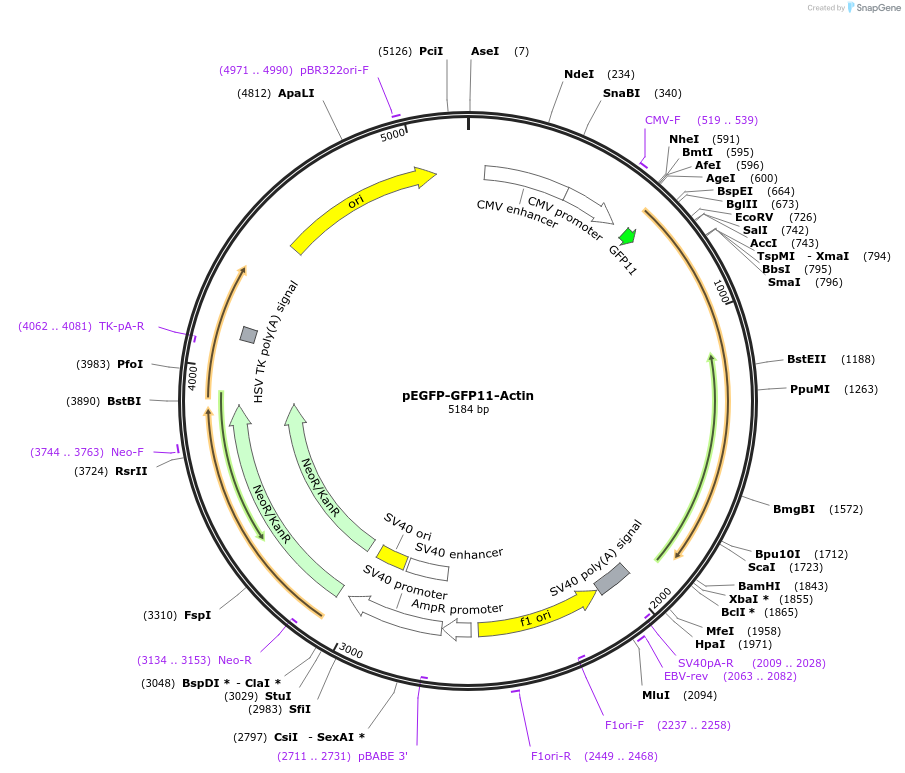

Backbone

  • Vector backbone
    pEGFP
  • Backbone size w/o insert (bp) 3954
  • Total vector size (bp) 5184
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GFP11-Actin
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1230
  • Entrez Gene
    ACTB (a.k.a. BKRNS, BNS, BRWS1, CSMH, DDS1, PS1TP5BP1, THC8)
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP11 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer SV40pA reverse
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Plasmid generated by Bo Huang (UCSF).

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFP-GFP11-Actin was a gift from Jin Zhang (Addgene plasmid # 181966 ; http://n2t.net/addgene:181966 ; RRID:Addgene_181966)

  • For your References section:

    FluoSTEPs: Fluorescent biosensors for monitoring compartmentalized signaling within endogenous microdomains. Tenner B, Zhang JZ, Kwon Y, Pessino V, Feng S, Huang B, Mehta S, Zhang J. Sci Adv. 2021 May 21;7(21). pii: 7/21/eabe4091. doi: 10.1126/sciadv.abe4091. Print 2021 May. 10.1126/sciadv.abe4091 PubMed 34020947
