pCAG-ASAP3ER
(Plasmid
#195356)
-
PurposeASAP3ER under the control of the pCAG promoter
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Diego (UCSD)
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 195356 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 195356-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 195356-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAGGs
- Backbone size w/o insert (bp) 6102
- Total vector size (bp) 7395
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameASAP3ER
-
Insert Size (bp)1293
- Promoter pCAG
-
Tag
/ Fusion Protein
- GFP
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (unknown if destroyed)
- 3′ cloning site HindIII (unknown if destroyed)
- 5′ sequencing primer caggtgcaggctgcctatc
- 3′ sequencing primer gcacagtcgaggctgatcagc
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 195356-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 195356-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-ASAP3ER was a gift from Brenda Bloodgood (Addgene plasmid # 195356 ; http://n2t.net/addgene:195356 ; RRID:Addgene_195356) -
For your References section:
Electrical signals in the ER are cell type and stimulus specific with extreme spatial compartmentalization in neurons. Campbell EP, Abushawish AA, Valdez LA, Bell MK, Haryono M, Rangamani P, Bloodgood BL. Cell Rep. 2023 Jan 31;42(1):111943. doi: 10.1016/j.celrep.2022.111943. Epub 2023 Jan 5. 10.1016/j.celrep.2022.111943 PubMed 36640310

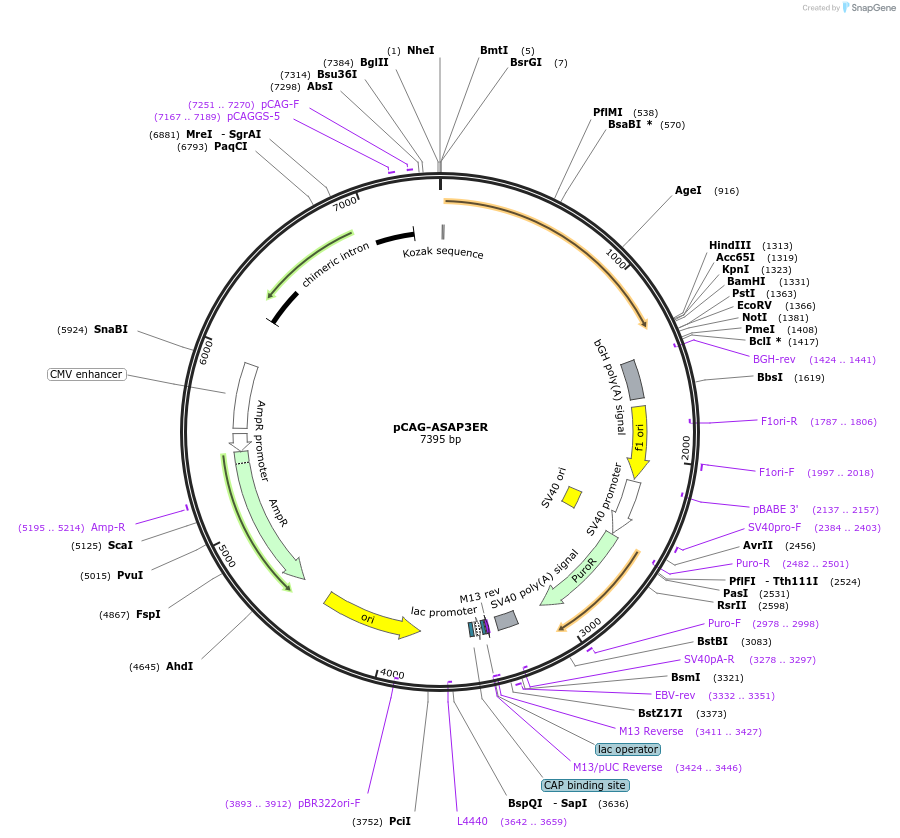

Map uploaded by the depositor.
