Pb459-mU6-sgRNA-EF1a-PuroR
(Plasmid
#195507)
-
Purposepiggybac vector expressing non-targeting control sgRNA cloned using BlpI and BstXI sites
-
Depositing Lab
-
Depositing OrganizationStanford University
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 195507 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 195507-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 195507-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepiggyBac
-
Vector typeMammalian Expression, CRISPR ; piggyBac
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePuromycin
-
gRNA/shRNA sequenceGCCGACTAGGGTCGATA
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site EcoR I (not destroyed)
- 5′ sequencing primer attctccttggaatttgccc
- 3′ sequencing primer cccgacgatatgatcctgat
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 195507-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 195507-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Pb459-mU6-sgRNA-EF1a-PuroR was a gift from Joanna Wysocka (Addgene plasmid # 195507 ; http://n2t.net/addgene:195507 ; RRID:Addgene_195507) -
For your References section:
A genome-wide genetic screen uncovers determinants of human pigmentation. Bajpai VK, Swigut T, Mohammed J, Naqvi S, Arreola M, Tycko J, Kim TC, Pritchard JK, Bassik MC, Wysocka J. Science. 2023 Aug 11;381(6658):eade6289. doi: 10.1126/science.ade6289. Epub 2023 Aug 11. 10.1126/science.ade6289 PubMed 37561850

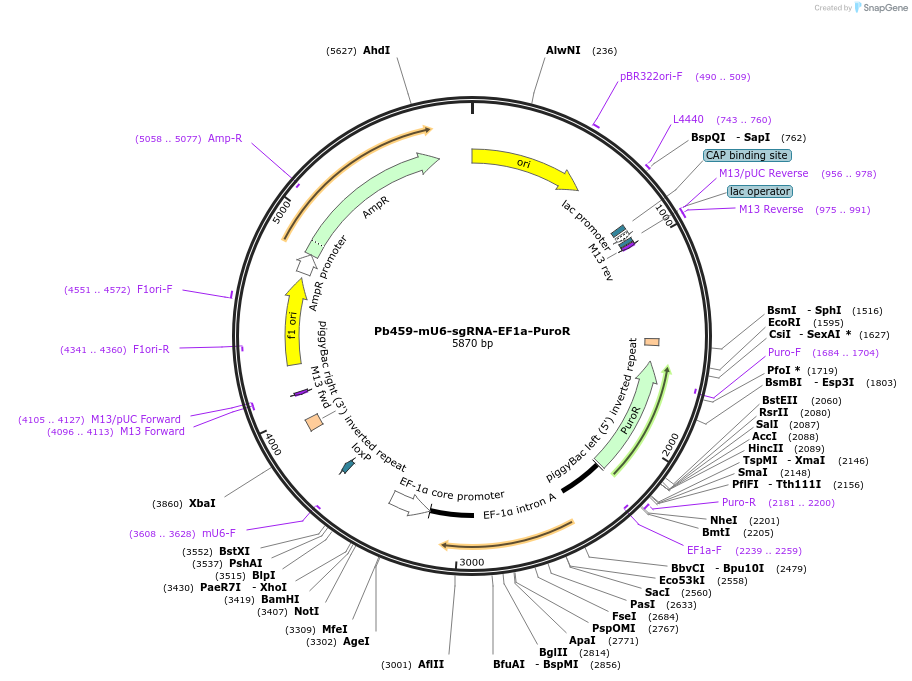

Map uploaded by the depositor.
